Is there room to upgrade 1000-watt inverter in Mercedes floorplan?

Dear Dave,

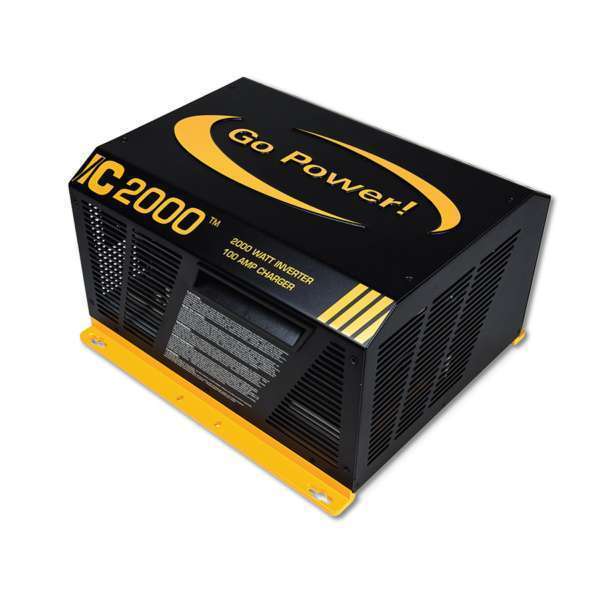

I am looking at purchasing a 2023 Thor Quantum Mercedes Sprinter. The problem is it only comes with a 1/2 wave inverter and only 1000 watts. I’m looking to upgrade the 1000-watt inverter and install a Go Power! IC2000 inverter with 2 AGM 100ah deep cycle batteries. Do you feel there is room for this or should I look for a different coach? —Donald

Dear Donald,
According to the Thor website and brochure, the Quantum is a Class C motorhome and is not available on the Mercedes Sprinter Chassis. It comes standard on the Ford E-Series and has an optional Chevy on the smaller units. The Mercedes Sprinter is only available on the Tiburon and Delano on the Class C units and their B Vans. The reason I bring this up is if the unit you are looking at is on a Mercedes Sprinter, it will have limited space for anything larger than the thinner 1000-watt inverter.

Inverter not available on Quantum

Also, according to the brochure for the Quantum, an inverter is not available as standard or as an option. Could this be a dealer add-on? It does show the battery compartment is large enough for four batteries. However, you would not want to put the larger IC2000 in that compartment as it is an open compartment designed for the standard Group 31 lead acid batteries, and the inverter is not weatherproof.

The Delano does come with a standard 1000-watt inverter for the entertainment system and select outlets. It does not list it as an inverter/charger, though, which means it must have a traditional converter either in the distribution center or standalone. I would also guess this is a WFCO brand converter/charger and would be compatible with the AGM batteries you plan to install.

Contact Thor customer service

I would suggest contacting Thor customer service to verify the type of converter/charger so you know if it is compatible or not. If it is, then you do not need to use the Go Power! IC2000 but rather the ISW2000, which is a pure sine wave model, which is smaller and less expensive.

I would also question why you need to go from 1000 watt to 2000 watt, as the refrigerator is a 12-volt compressor-driven model. That would not require 120-volt power while boondocking and is not supplied by the inverter. I would recommend going to Go Power!’s website and using their calculator tool to determine how much power you really need.

Since the standard inverter only runs the entertainment center and a select few outlets, it might be overkill. The new AGM batteries will be less maintenance but still only offer 100 total AH, as you only want to drain an AGM down 50%.


 You might also enjoy this from Dave

Does my RV still need a battery when connected to shore power?

Dear Dave,
I live in Montana. I remove my RV’s dual 12v batteries and bring them inside. Then I plug my trailer into shore power to run a small heater. I discovered that I cannot use my slide function without the batteries hooked up to the system. What is the purpose for wiring it that way? Shouldn’t it be set up to also work off shore power? —Mark, 2019 Northwood Arctic Fox 25W

Read Dave’s answer.


Dave Solberg is a leading expert in the RV industry and the author of the “RV Handbook.”

Read more from Dave here

HAVE A QUESTION FOR DAVE?

We have started a new forum link for Ask Dave. Please be as brief as possible. Attach a photo or two if it might help Dave with his response. Click to visit Dave’s forum. Or send your inquiries to him using the form below.

Click or drag a file to this area to upload.

##RVDT2032

Advertisement/Affiliate

If you value what you learn from RVtravel.com, would you please consider becoming a voluntary subscriber by pledging your support? Every contribution, no matter how modest, helps us serve you better. Thank youLearn more here.

Facebook Groups you might like
RVing with Dogs
RV Tech Tips
RV Advice
Towing Behind a Motorhome
RVing Over 70
. . . and the official RVtravel.com Facebook page

Winterizing your RV this season? Amazon has a wide choice of RV antifreeze.

Comments

4.7 3 votes
Article Rating
Subscribe to comments
Notify of

This site uses Akismet to reduce spam. Learn how your comment data is processed.

2 Comments
Newest
Oldest
Inline Feedbacks
View all comments
Richard
24 days ago

I have a 2020 Thor quantum sprinter KM24…installed a go power ISC 3000 watt inverter in the large left outside storage bin and two battleborn batteries…can run everything in the rig if I want to. Needed 3000 watts to run the microwave for health reasons. If you do install make sure you size the breaker correctly..I used a 400amp…all works fine…also installed 400 watts of solar.. have been off grid for up to six days so far..just need more water capacity

Glenn A
24 days ago

I’ve never heard of a 1/2 wave inverter. All I’ve experienced were either pure sine wave or modified sine (square) wave.
