It’s the stuff you can make into a nightmare. You’re tooling down the highway, approaching a curve. What you don’t know is that the road ahead of you is sheeted with invisible black ice. Your rig hits the ice, and your hope of control is down the drain. As your rig slides off the roadway, you see a steep embankment coming right up. It’s a long drop to the bottom. What prevents you from a fateful meetup? A humble highway guardrail. But a recent dramatic test shows that the typical highway guardrails probably won’t stop a modern electric vehicle. What about your RV?
Highway guardrails installed “when consequences … would be less severe”
Highway guardrails aren’t just for steep embankments or areas where leaving the roadway might make for a long drop. They’re often found in those situations, but they cover much more ground. When there’s something that can’t be removed but could create serious harm if hit with a vehicle, guardrails are perhaps the first—and last—line of defense. Think bridge piers, retaining walls, utility poles, or even just an area where head-on collisions are common.
The Federal Highway Administration division of the U.S. Department of Transportation says guardrails are installed “when the consequences of striking a guardrail would be less severe than striking the other objects next to the roadway…. They can make roads safer and lessen the severity of crashes. The guardrail can operate to deflect a vehicle back to the roadway, slow the vehicle down to a complete stop, or, in certain circumstances, slow the vehicle down and then let it proceed past the guardrail.”
Something more sinister lead to a crash test
Guardrails have been around since the 1960s, and while their purpose hasn’t changed, traffic that can impact guardrails most certainly has. Every year, 100,000 vehicles run off the road, resulting in thousands of deaths. Many of those crashes involve guardrails that should be reducing the fatality rate.
But add another, more sinister thought. As military planners have seen the growing population of electric vehicles on America’s roadways, they started wondering: What if bad guys wanted to turn EVs into “hostile vehicles”? How would their protection measures, as well as how would guardrails, stand up to EVs? The Army funded researchers from the University of Nebraska-Lincoln to investigate the matter.
EVs went straight through, or right under

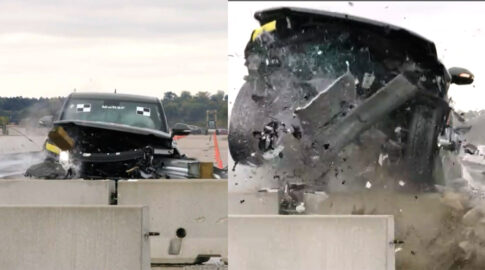

The results of a crash test performed on a guardrail on October 12, 2023, didn’t provide much reassurance. At 60 mph, a 7,000-plus-pound 2022 Rivian R1T truck tore through a typical highway guardrail barrier. The guardrail didn’t do much to reduce the speed of the pickup. A different test, this one in 2018, pitted a 2018 Tesla Model 3 sedan against a guardrail. The heavy, low-center-of-gravity Tesla simply lifted the guardrail and passed below it, coming to rest behind the barrier.
If you’re wondering about the makeup of the guardrail at the test facility, here are the particulars. It featured a 12-gauge corrugated steel guardrail attached to 6-inch-deep steel posts, anchored to the rail with blockouts 8- to 12-inches thick. The top of the rail was 31 inches above the road. This was a newer Midwest Guardrail System, or MGS, designed to reduce barrier breakthroughs and roll-overs. These are too often seen with many older guardrail systems, found across much of the country.
MGS has been tested with small cars that weigh up to 2,400 pounds and pickups that weigh 5,000 pounds. Up until now, little has been known about how the system would perform in crashes involving EVs. The “wonder what” issue is that EVs typically weigh 20% to 50% more than gas-powered vehicles, and they have lower centers of gravity. The University’s research suggests EVs are involved in run-off-road crashes at about the same rate and about the same speeds as gasoline vehicles. That would mean an EV crashing into a roadside barrier could have 20% to 50% more impact energy.
Not a snowball’s chance
As evidenced by the photos alone, even the most modern, higher-impact-resistant guardrail system doesn’t stand a snowball’s chance of “deflecting a vehicle back to the roadway or slowing a vehicle down to a complete stop” when it comes to an EV. How about with your Class A or even Class C motorhome? While we don’t have enough data available to point to “low center of gravity” issues, the typical loaded motorhome is going to scale in at more than the 7,000-pound Rivian test truck used in this scenario.
As much as some may find the idea of electric vehicles taking over the highways unsavory, they may, in an unexpected way, benefit the RVing community. How so? “It is going to be necessary to reexamine the designs of roadside barriers even beyond the EVs,” said one of the University’s researchers. “It’s a critical and timely need.” Yes, more research could yield highway guardrail systems that could save RVers’ lives.
More issues than just the guardrail itself
In the meantime, existing guardrail systems around the country will hopefully do their job. But even that is a questionable issue. In 2011, the federal government updated safety guidelines for guardrail testing, adding more stringent testing aspects. But the states could still buy and install guardrails that only met the old standards. How many miles of the weaker-sister guardrails are on American roads is anyone’s guess.
Guardrail installation and maintenance is another problem. There are no standards for what training is required for guardrail installation. A Federal Highway Administration survey found that guardrail installation crews often struggled when installing X-LITE end terminals. Those terminals are put on the end of guardrails and are designed to absorb collision impact. They are also supposed to prevent the guardrail from becoming an oversized chicken skewer. But because the instructions on proper placement and installation were unclear, some simply weren’t installed correctly. This created a serious hazard on the road when accidents occurred.
In many fatal guardrail collisions, the guardrail was not designed or installed at a proper height. That’s a critical matter, one that can mean life or death. For RVers, guardrails that are not built high enough could allow your rig to jump over them. Guardrails built too high can create too much space beneath them, allowing motorcyclists to slide underneath.
Too many unknowns
Too many unknown factors can put your life at risk. Federal guardrail standards are based on an average vehicle weight, and impact speeds of 62 miles per hour. So what if your weight is more than the typical sedan? One could surmise your chances are better if you’re traveling less than 62 mph. Getting off the accelerator when coming up on guardrails could be one possibility. But with so many highway guardrails, and often coming up out of the line-of-sight, it’s probably not too practical. Perhaps this is one the trade-offs that comes with the RV lifestyle.
