Gray water tank valve not working
I can’t get my gray water tank to drain on my Winnebago Era 2020. The black water will drain, so I know the macerator pump is working. I took a video of the valve. It starts with the handle being in the open position. It seems like that big first black block should move but I’m not familiar with it. Thanks for the article. Hopefully, I’ll be able to winterize. I just bought the vehicle used and discovered this problem. —Ron

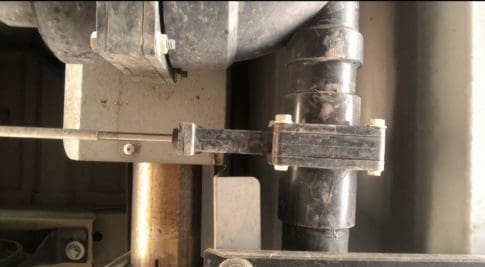

I took a screen capture of the video you sent and posted it above. It looks to be a basic Valterra spade valve for the gray water tank, as it has 1.5” pipes going to and from. The black block should not move as the handle/cable is connected to a spade valve that moves back and forth inside the sealed housing.
Here is a sample of one that I use for demonstrations in the Q&A and Gold events:
Your valve has a longer handle and probably even a cable that goes to the other side of the rig, but it functions the same. Pull the handle and the stem moves out, pulling the spade and opening the valve to allow water/sewage out. This one happens to be a Camco version that I got at a local Walmart in the RV section.
Possible causes to check
I believe your stem disconnected from the spade and they are not screwed or threaded as the handle spins freely. I would believe it has some type of groove and ring clamp. You will need to take the bolts out and remove the mechanism. Since it’s gray water, it will not be as messy.
I would place a funnel or trough under the valve and a large pan on the ground. I have used an old plastic sled in the past. Dump the water out and you should be able to remove the valve. You might have to take the handle off at the harness on the other side and remove the entire mechanism. Then you should be able to take it apart and see if it can be fixed or if it needs to be replaced.
