Camco Eaz-Lift TR3 600 weight distribution hitch improves towing experience

For those towing a travel trailer, how much did you think about the hitch that is the bridge between your tow vehicle and the trailer? I have found that many people mostly pay attention to the truck but don’t give the hitch much thought. I was one of these until I spoke with the people at Camco who recommended I try the new Eaz-Lift® TR3 weight distribution hitch.

As trailers become heavier and heavier, a weight distribution and sway control hitch does a lot to make the towing experience better.

Weight distribution

Weight distribution takes the downward force exerted by the trailer and distributes it more evenly between the wheels of the tow vehicle. The advantages of doing this include the fact that you have better steering control plus the tow vehicle sits properly as designed by the manufacturer.

Essentially, most weight distribution hitches accomplish this through metal bars that extend backward from the hitch and provide a measure of counter to the weight of the truck and trailer. So, effectively, these are like a couple of extra springs that help distribute the weight more evenly.

Sway control

Another function of many of these hitches is sway control. In my previous hitch, the way this worked was that the weight distribution bars rode on the attachment point on the trailer which created friction and, thus, helped reduce the sway between truck and trailer.

You have to think that a travel trailer is a gigantic slab-sided box behind your truck. Wind and other factors can push the trailer around more than most vehicles, which causes sway. A hitch with sway control helps eliminate some of this tail-wagging-the-dog condition.

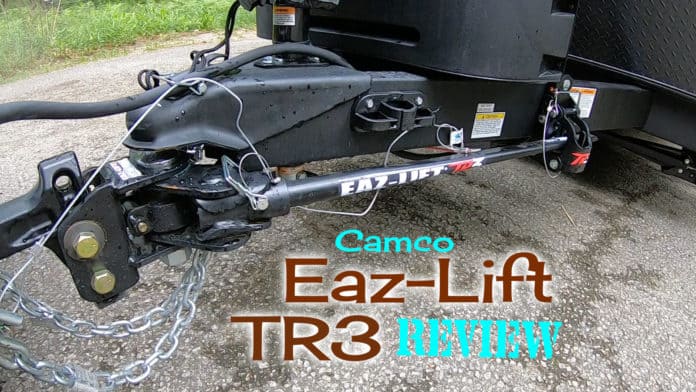

Camco Eaz-Lift TR3

This hitch is a new product for Camco’s Eaz-Lift team. It features both sway control and weight distribution functionality.

The weight distribution is done with bars that compensate for a specific amount of weight that slide into a trunnion on the hitch. That pivots with the movement of the trailer and truck on corners.

The trunnion has a collar around the pivot point that, in turn, has an adjustment that lets you tighten, loosen or simply release the friction on this pivot point. With this functionality, you can increase, decrease or completely eliminate sway control on the hitch.

Highlights of the Eaz-Lift hitch

Compared to my previous hitch, where I had to lift the bars into place on the hitch, the Eaz-Lift just has those bars slot into place. They are then held with a pin which is tethered to the hitch—no losing this. This is much, much easier. I’ve seen people not quite get the lift-in bars in place such that they fall out on the highway.

That’s not good.

In this case, easing the bars into the hole is a cinch. Then you use an included tool to lift the bars into place on a mount on the trailer’s A-frame and you’re good to go. It’s a really easy process.

Since the sway control is in the pivot point and adjusted with an included Allen wrench, it’s completely silent. My previous hitch used metal-on-metal friction to accomplish sway control. There was no adjustment whatsoever.

One of the reasons you might not want sway control is tight parking maneuvers, including backing into a campsite or something like that. It’s just a plus that you’re given this option.

In fact, there really isn’t anything about the Eaz-Lift hitch that doesn’t demonstrate attention to detail and high build quality.

The hitch is well packaged with a variety of options for easy installation.

Installation

I had the hitch professionally installed, but Camco does have a video about installing this hitch.

All the bits and pieces are included with the hitch itself and the range of adjustability is such that you should be able to install this in most circumstances. I also like that the hitch isn’t particularly tall so I can easily open the tailgate of my truck.

A tip

I have seen a lot of RVers struggle with the installation of their weight distribution hitches needlessly. Many campers basically feel that they have to fight the installation points on the hitch to get the weight distribution bars in place.

This is both silly and can be dangerous.

Instead, use the power tongue jack on your travel trailer to lift the truck and trailer up to the point where there is little or no tension on the weight distribution bars. Then snick them into place and you’re done. This is easy and doesn’t require you to wrestle with the installation while there are hundreds of pounds of tension on the bars.

In summary

Camco has done a really good job with this hitch design.

I much prefer it to what I had before for so many reasons, including silent operation, ease of installation, use and build quality. Clearly, they have been listening to customers in designing this product.

The only head-scratcher, to me, is the model designation. The hitch I got from Camco was the TR3 600 series, but this is capable of handling up to 800 pounds of trailer tongue weight. So it’s just a naming convention that I didn’t understand.

If you’re looking for a hitch that does a really good job of handling the load, providing good weight distribution and sway control, and operating in a quiet and effective manner, I am quite pleased with the Camco Eaz-Lift TR3 weight distribution hitch.
