RVelectricity – Just Ask Mike (J.A.M.): Time to check the water heater anode rod

Welcome to my J.A.M. (Just Ask Mike) Session, a weekly column where I answer your basic electrical questions. If you’re a newbie who’s never plugged in a shore power cord (or ask – what’s a shore power cord?), or wonder why your daughter’s hair dryer keeps tripping the circuit breaker, this column is for you. Send your questions to Mike Sokol at mike (at) noshockzone.org with the subject line – JAM. Today I discuss the water heater anode rod.





Dear Mike,
I remember you writing something about putting water in your electric water heater before turning it on in the spring. But what about the anode rod? Any recommendations? —Dusty R.

Dear Dusty,
That’s a great and timely question. Hopefully you read my article last fall about being careful not to turn on power to your electric water heater before filling it up with water while de-winterizing it this spring. If not, please read all about it HERE

What’s this anode thing?

Well, it’s technically called a sacrificial anode because its job is to sacrifice itself to protect the metal parts of your RV (and home) electric water heater from corrosion. It’s a long metal rod made of aluminum or magnesium that extends into the interior of the tank.

This is needed because any two dissimilar metals in an electrolyte (even potable water) will act like a battery. And that small DC current is enough to start forming ions and leaching them away from your important metallic bits inside of your water heater. Without an anode your electrical water heater tank would fall apart in a few years.

What is the job of the anode?

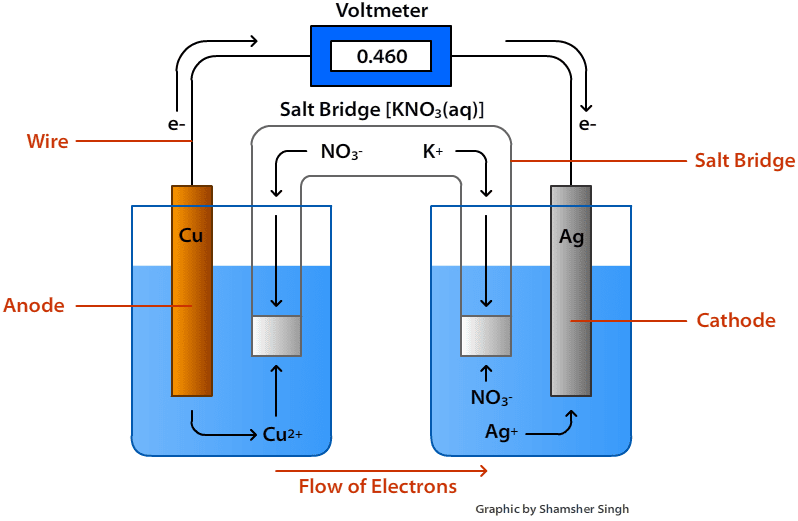

It “takes one for the team,” as it were. As you can see in the diagram, there’s an anode (the sacrificial one) and the cathode (all the other metal parts. The anode provides the source of ions rather than your metal tank. This diverts the corrosion effect away from your metal tank parts, and corrodes itself.

After several years (depending on how much it’s used) this sacrificial “anode” actually sacrifices itself and turns into a shadow of its former self.


The following ad was auto-inserted by Google


How will I know it’s time to be replaced?

You’ll know it when you see it, since most of the anode will be eaten away. But most manufacturers recommend checking and replacing one every three years.

However, they’re cheap enough that if you take it apart this spring, I would simply replace it even if the element isn’t too corroded. “An ounce of prevention is worth a pound of cure.” Here’s one that my son just pulled out of his residential water heater. Looks like a swarm of angry termites chomped on it…

Can I replace one myself?

If you’re reasonably handy, it’s a pretty straightforward DIY Project.

The anode a great thing to check prior to de-winterizing your RV prior to your first spring trip. First, make sure you get the appropriate anode for your exact water heater. There’s only a few types of RV anodes available, but make sure you have exactly what you need in hand before you start tearing things apart.

The best place to start is to search on the brand and model of your RV water heater. Most of these cost around $10, so get one now for a rainy day. You’ll thank me later…

What about tools?

Next, make sure you have the right tools. The same multi-tool socket that I recommended for changing your water heater’s electric element will usually work on the anode as well, but check to be sure.

So, go ahead and start gathering your tools right now. Don’t wait until the Friday before your Saturday camping trip to start on it. That’s just asking for trouble…


The following ad was auto-inserted by Google


Don’t over-torque it!

Remember, the replacement anode should have a gasket or use teflon tape, and it will have a recommended tightening torque. Don’t overdo it, lest you break something expensive. And be sure to fill up with water and check for leaks BEFORE you pull out for your first trip. A leak is easy to fix in your driveway, but not so easy while camped far away from civilization.

OK, everyone. Remember that electricity is a useful and powerful force, so we all need to pay attention to safety precautions while using it.

Let’s play safe out there….

Send your questions to me at my new RVelectricity forum here.

Mike Sokol is an electrical and professional sound expert with 50+ years in the industry. His excellent book RV Electrical Safety is available at Amazon.com. For more info on Mike’s qualifications as an electrical expert, click here.

You don’t want to miss Mike’s webcasts on his YouTube channel.

For information on how to support RVelectricity and No~Shock~Zone articles, seminars and videos, please click the I Like Mike Campaign

##RVDT1811;##RVT1043

Comments

Subscribe
Notify of

This site uses Akismet to reduce spam. Learn how your comment data is processed.

3 Comments
Newest
Oldest
Inline Feedbacks
View all comments
Jay Ward
6 months ago

All Suburban Heaters have an anode rod–Atwoods don’t. I remove mine every winter and put in a new one every spring after flushing out the WH to get out the crud from the anode! Also, hand tighten with a socket wrench–the threads are tapered.

tom
6 months ago

Make sure you actually have an anode rod in your water heater. Not too difficult to change, but spend your time on a project that is actually there.

Dan
6 months ago

Not all water heaters use an anode. Our aluminum tank Atwood water heater doesn’t have one.
