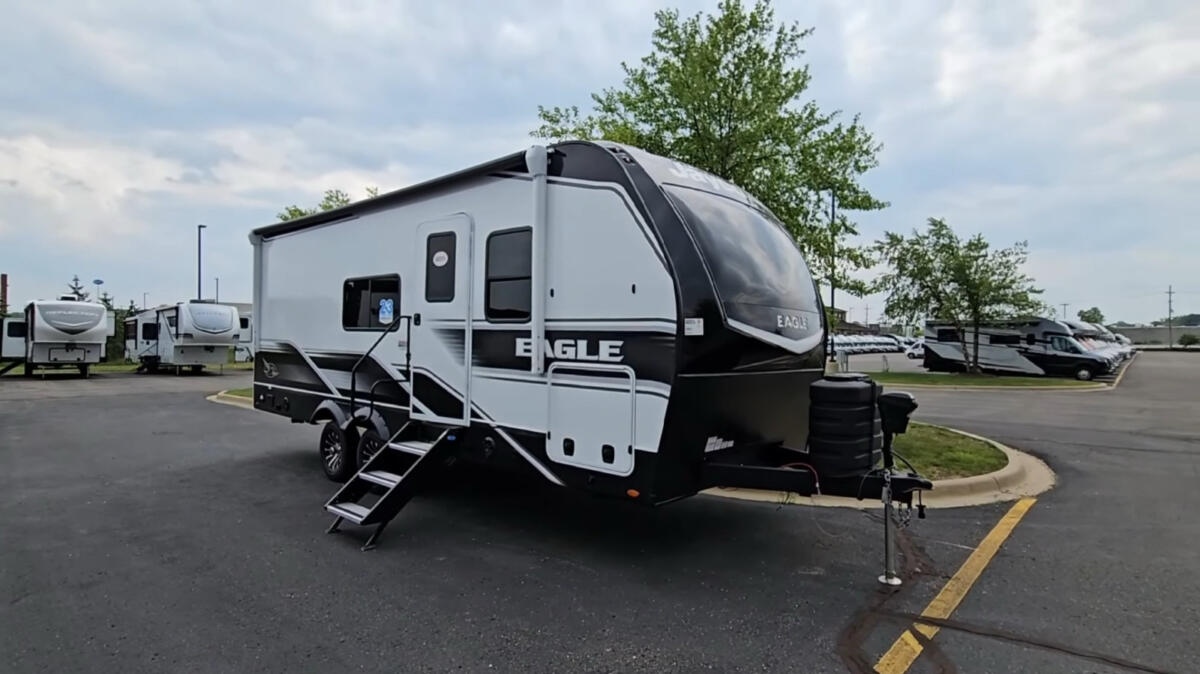

Today’s RV review is of the 2026 Jayco Eagle HT 230MLCS travel trailer. In the hierarchy of Jayco’s Eagle travel trailer world, this is the smallest and most affordable. And, when I saw the base MSRP, I was surprised at the value here. Until I dug deeper—more on that in a moment.
This is a very popular floor plan among RV makers and one I’ve looked at in a number of other brands, including the Grand Design Imagine XLS 22MLE, the Brinkley RV Model I 235, and one I’ve actually considered owning, the Keystone Cougar 22MLS. So, if I had a big-league do-over, would I still put the Cougar at the top of my list?
Let’s also talk about something I’ve written about before: the “half-ton” or “HT” designation. I wouldn’t even consider towing this big trailer with a half-ton truck. With an 8,400-pound GVW (gross vehicle weight) figure, about 12-15% is going to be on the tongue, which pencils out to about a half ton. Since many half-ton trucks max out at about 1,700 pounds of cargo carrying, that doesn’t leave much for your passenger(s) and anything else you want to carry with you—such as a 100-pound weight distribution hitch, for example.
It doesn’t matter what you can pull. Remember, what you can carry is usually the limiting factor in any tow vehicle. I wish RV companies would just quit with the half-ton designation already.
Start at the road with the Jayco Eagle HT 230MLCS

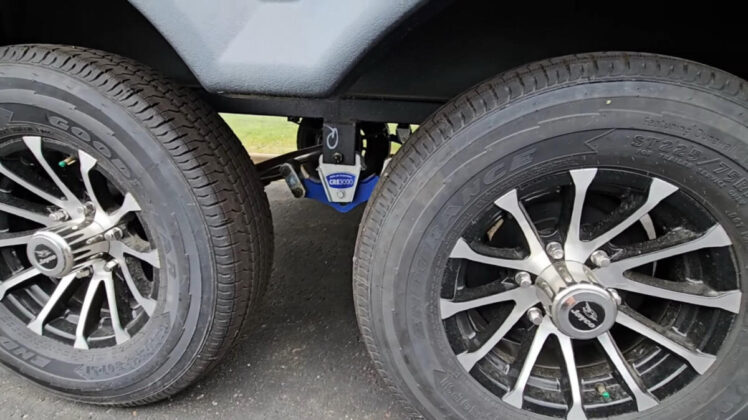

Where the rubber meets the road, you have Goodyear Endurance tires, which is a plus. There’s also a MORryde CRE3000 suspension system, although still with leaf springs. Meh.
The slide mechanism is BAL’s newer EXACT-SLIDE® system, which is a cable mechanism but one that’s certified to be usable with the slide in or out. Now, I know plenty of you use your slides when they’re in, and that’s fine. But this system is specifically intended to be used both when it’s in or out.
I was also pleased with the thickness of the baggage doors, so this might do better in some of these horrible, humid days we’ve been having lately. Bleh to the weather of late.

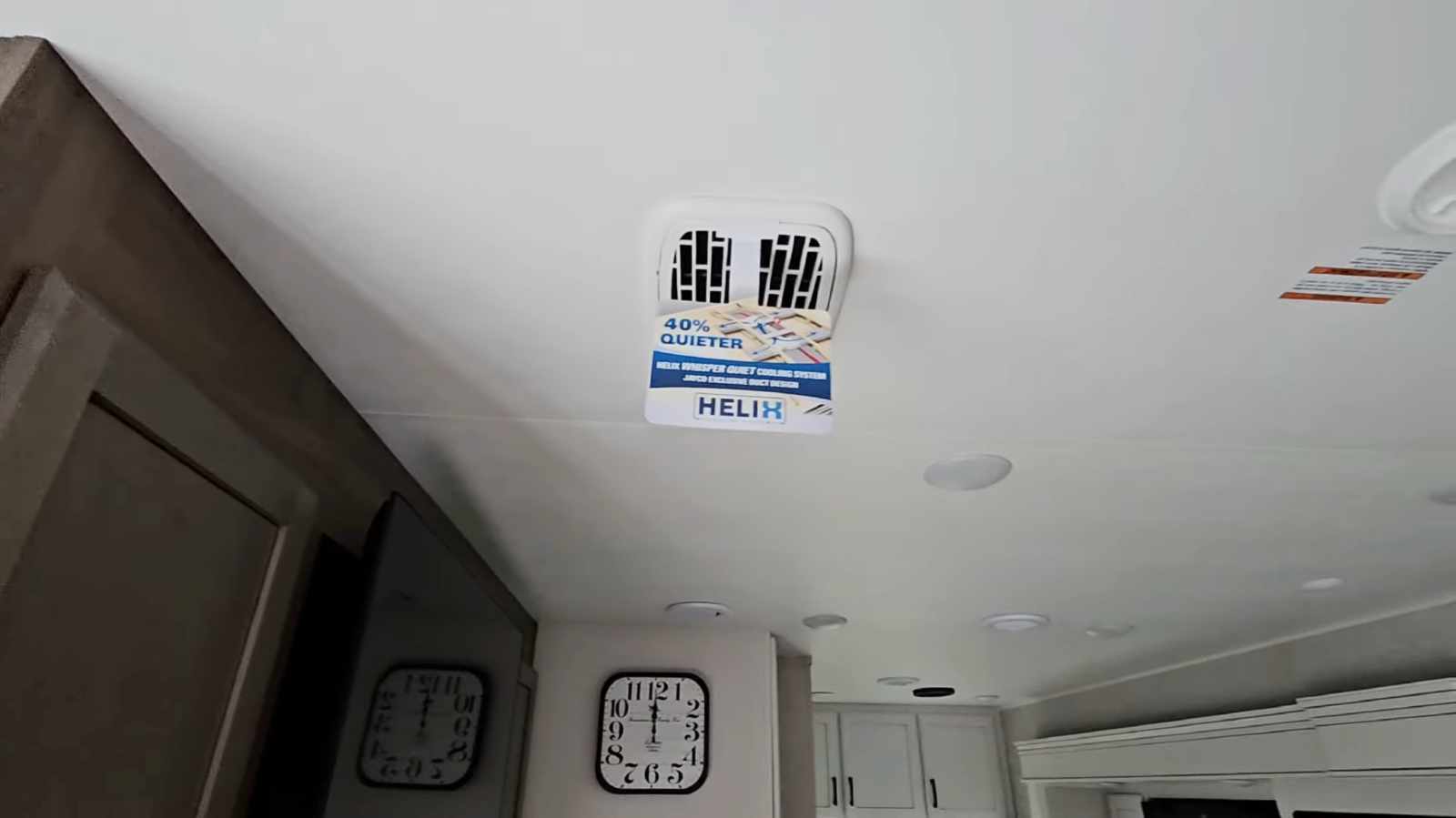

And, on the subject of combating weather, this has a centrally ducted air conditioning system that uses an intake that is claimed to reduce the sound of the A/C by some 40%. It’s a much better system for keeping the raucous sound of the A/C down.
What’s inside the Jayco Eagle HT 230MLCS

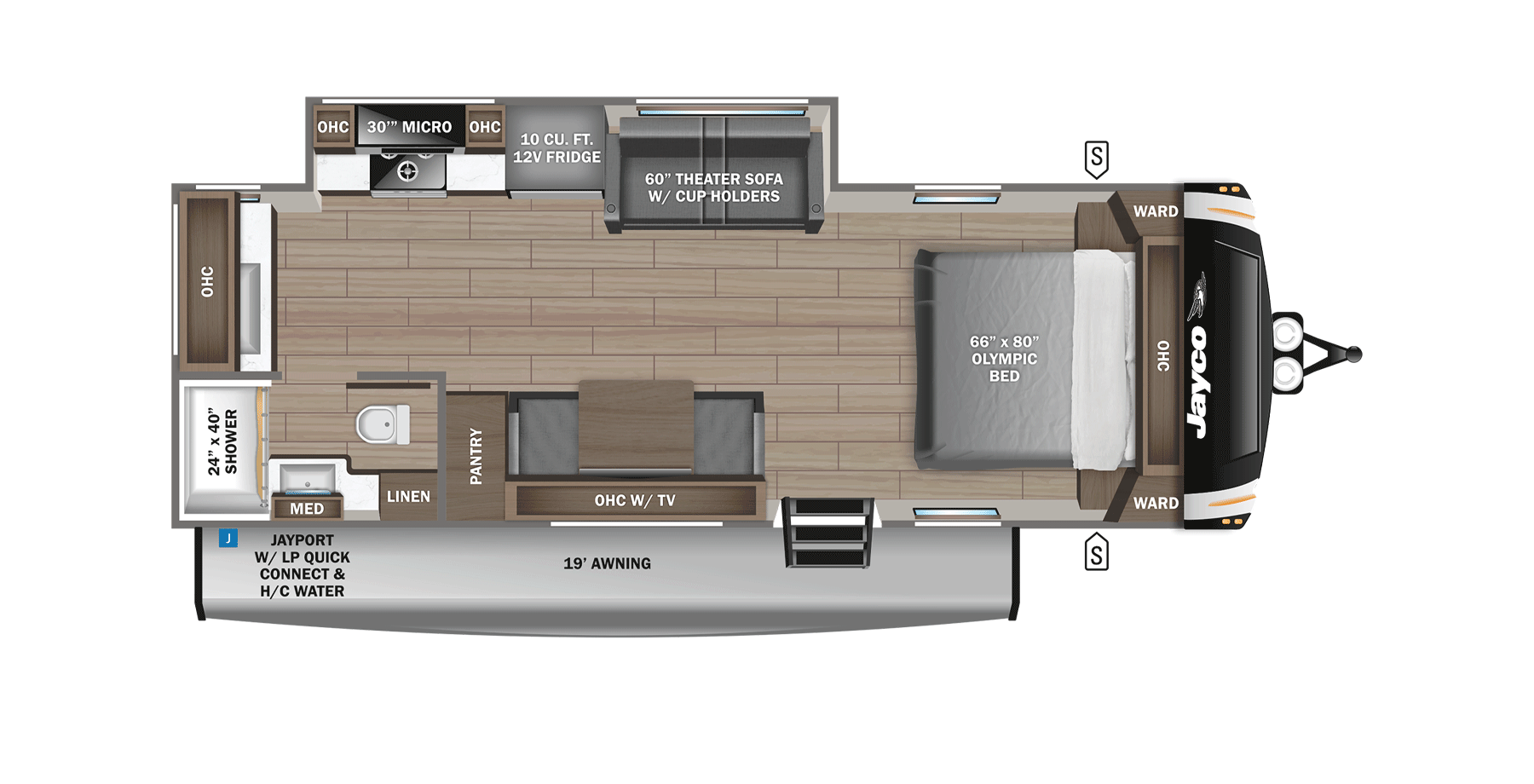

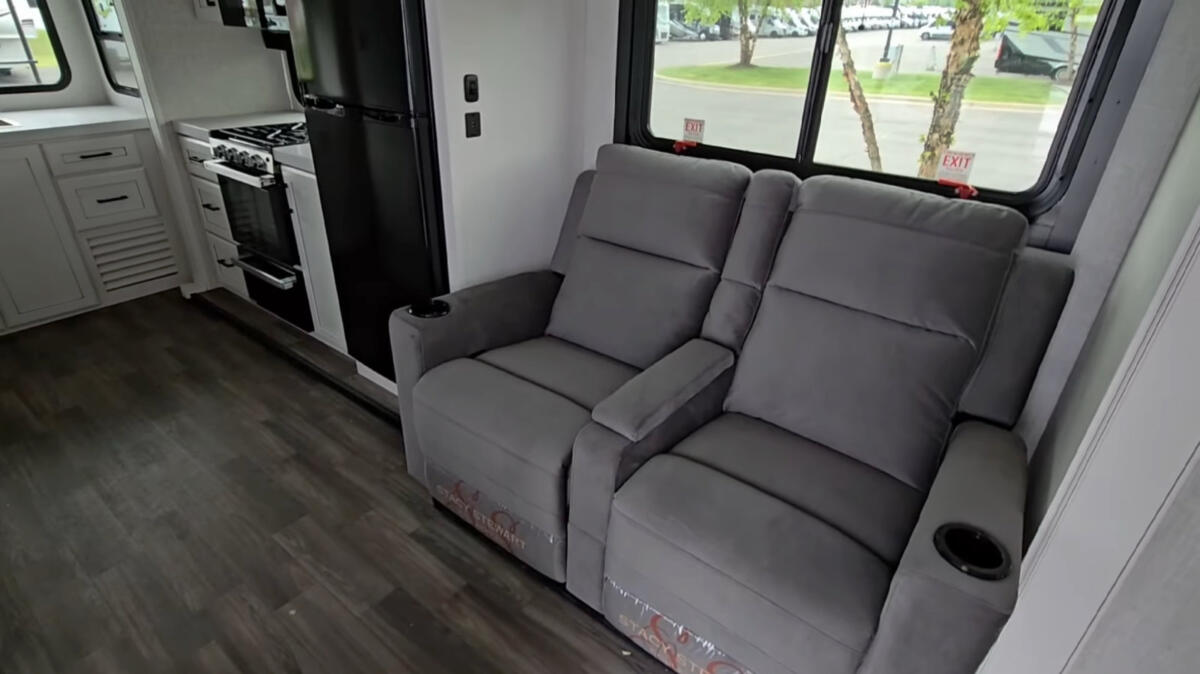

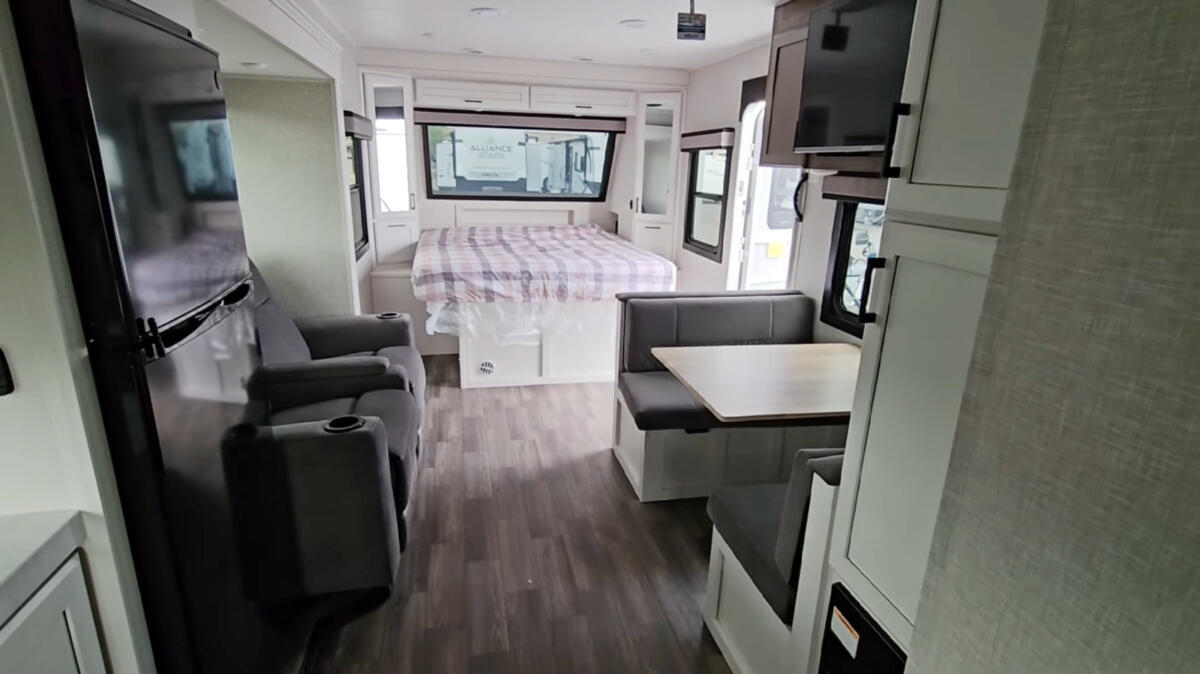

This is sort of a “one-room” RV where there is essentially one large room without separation. However, in that room are some very nice recliners on the road side in the slide room facing the TV over the dinette on the camp side.
That dinette does fold down, of course, to be a bed if someone just has to stay with you.
Up front, there is a 66” X 80” bed that Jayco honestly calls an Olympic bed. This is a good size and, surprisingly, there’s still space on either side. You’ll also find overhead cabinets here and wardrobe cabinets on both sides. In addition, bedside stands have both household and USB power. Nice.
The kitchen is all the way at the back, and Jayco uses a three-burner propane stove with a very large oven. (Thank you!) There’s also a very large residential-size microwave above it. The fridge is a GE 12-volt model with a glass door front. Someone at GE needs to realize that their swing latch doesn’t do much to keep the door closed in transit. I think this is a lousy design on GE’s part.

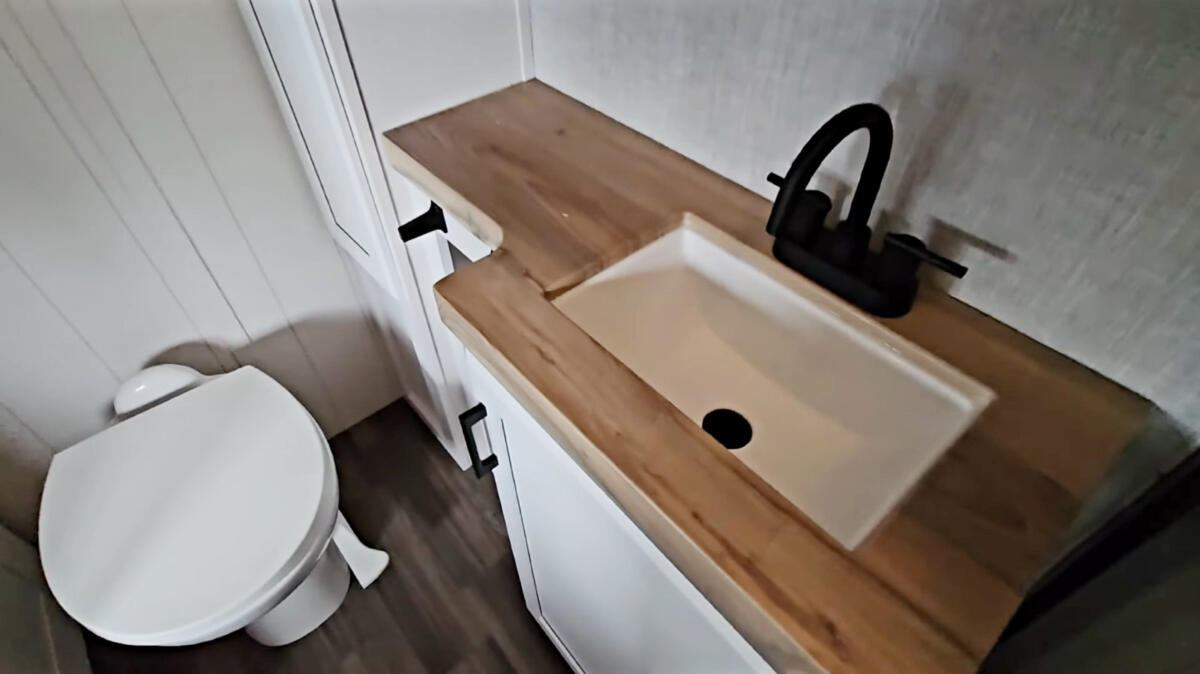

In the bathroom, there is decent space with a rectangular shower and a porcelain foot-flush toilet. I know with the other reviews of this floor plan there were comments about the bathroom being right by the kitchen. But, really, isn’t that true in most RVs? It’s not like these are big spaces.
Boondocking and travel access

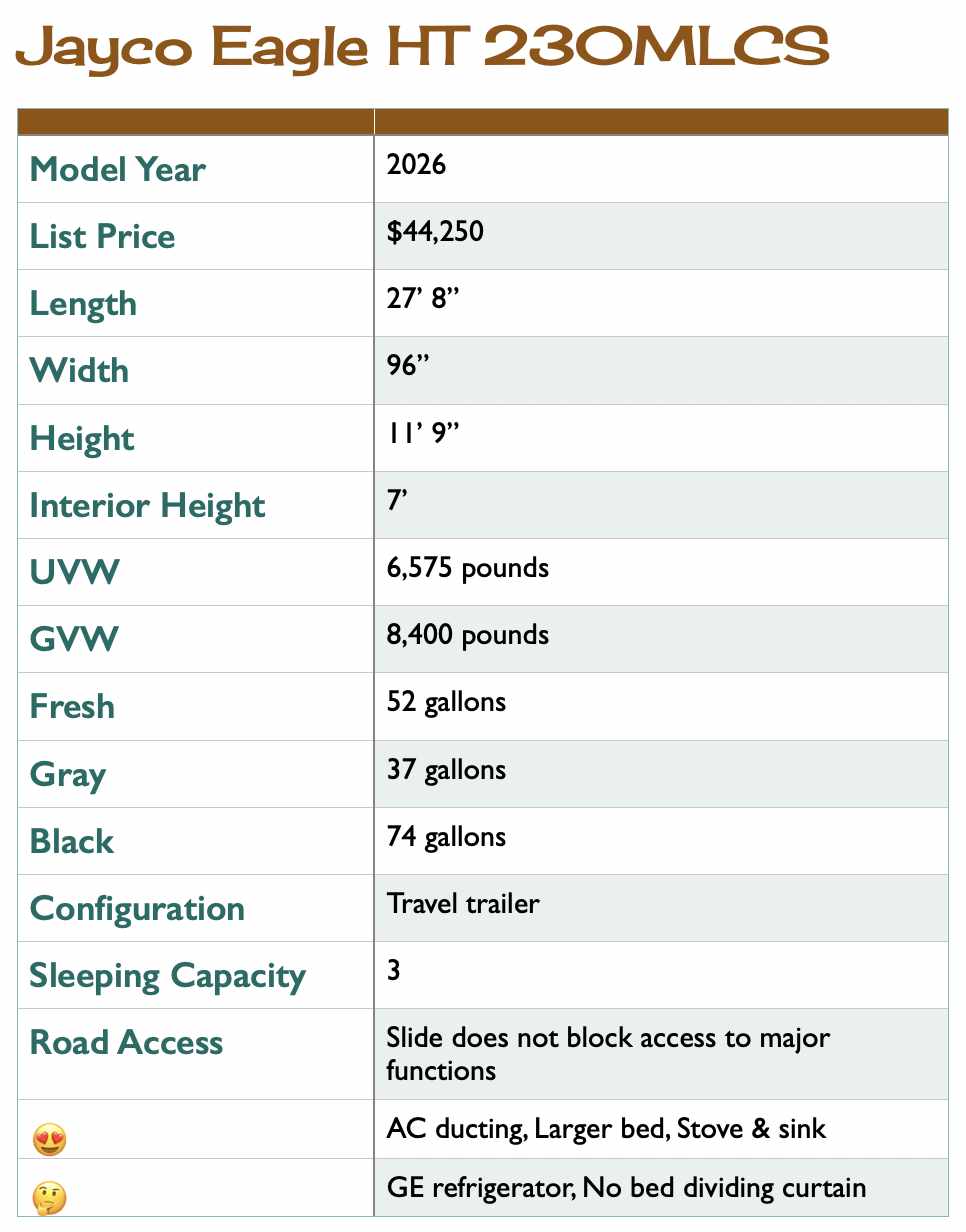

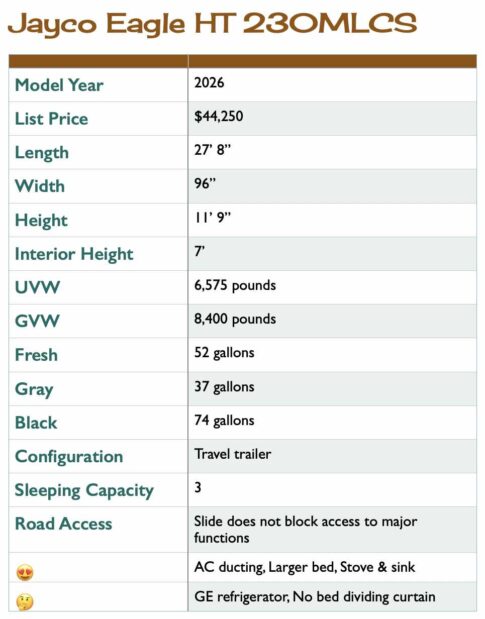

I was floored by how large the black tank is on this trailer, and I wonder if that’s actually a typo on Jayco’s website. But these are still respectable tank sizes, so it’s all good.
You can access the whole trailer even with the slide in. Again, you could use the theater seats in the slide with the slide in, so that’s a bonus. There is an enhanced solar package called Overlander 2, which features 400 watts of solar, a 30-amp charge controller, and a 1800-watt inverter.
My thoughts about the Jayco Eagle HT 230MLCS
There is a lot I liked about this floor plan. If I were to consider this floor plan again, this Jayco model might rank at the top or near there.
When I first looked at the company’s website, the base MSRP for this was $44,250, which is affordable for what you get. Then I looked further, and there is $17,499 worth of “mandatory options.” What the French Toast is a “mandatory option”? Is it an option, or is it mandatory?
So now we’re up to $61,749. While this is a nicely built and nicely equipped RV, I feel like I got cheated on a bit here.
Something I liked last year when I toured Jayco’s facilities was that Jayco has a PDI (pre-delivery inspection) for each RV they build in specific facilities. That’s a significant thing, actually.
So, I do like this floor plan and some of the quality features built into it. But what do you think? I always appreciate your input.
