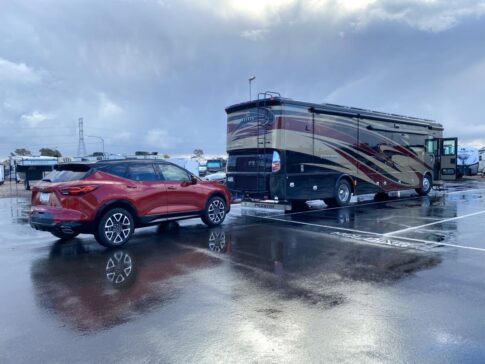

As I reported a couple of weeks ago, we finally bought a new flat-tow car! A red-hot 2024 Chevy Blazer. I was surprised how well our towing experiment and flat-tow install went—I must have euphoric memory about past tow installs, though, because I wasn’t exactly prepared for the cost.

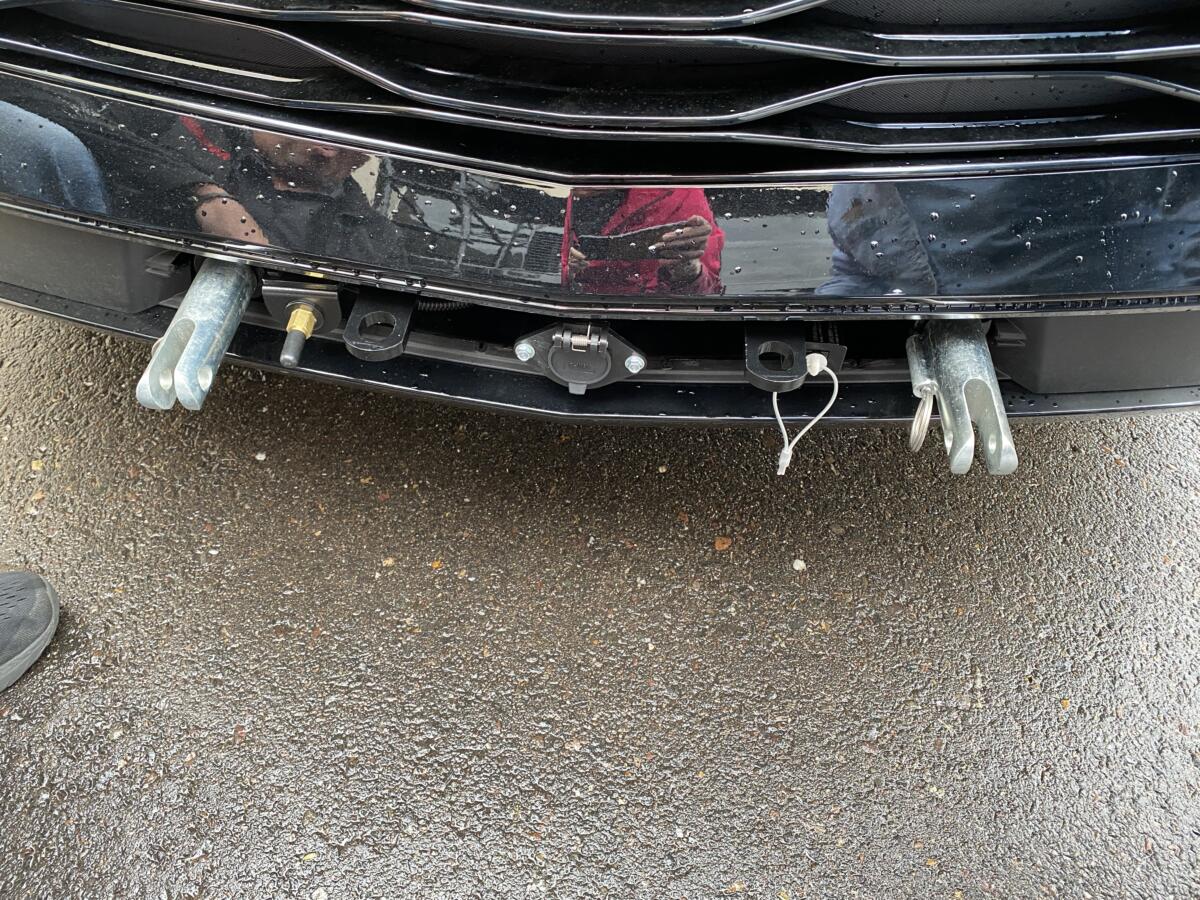

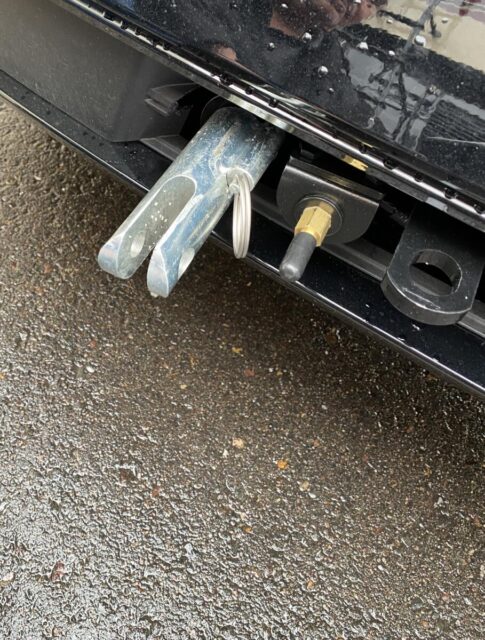

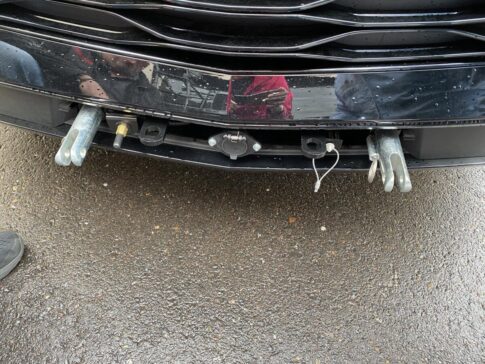

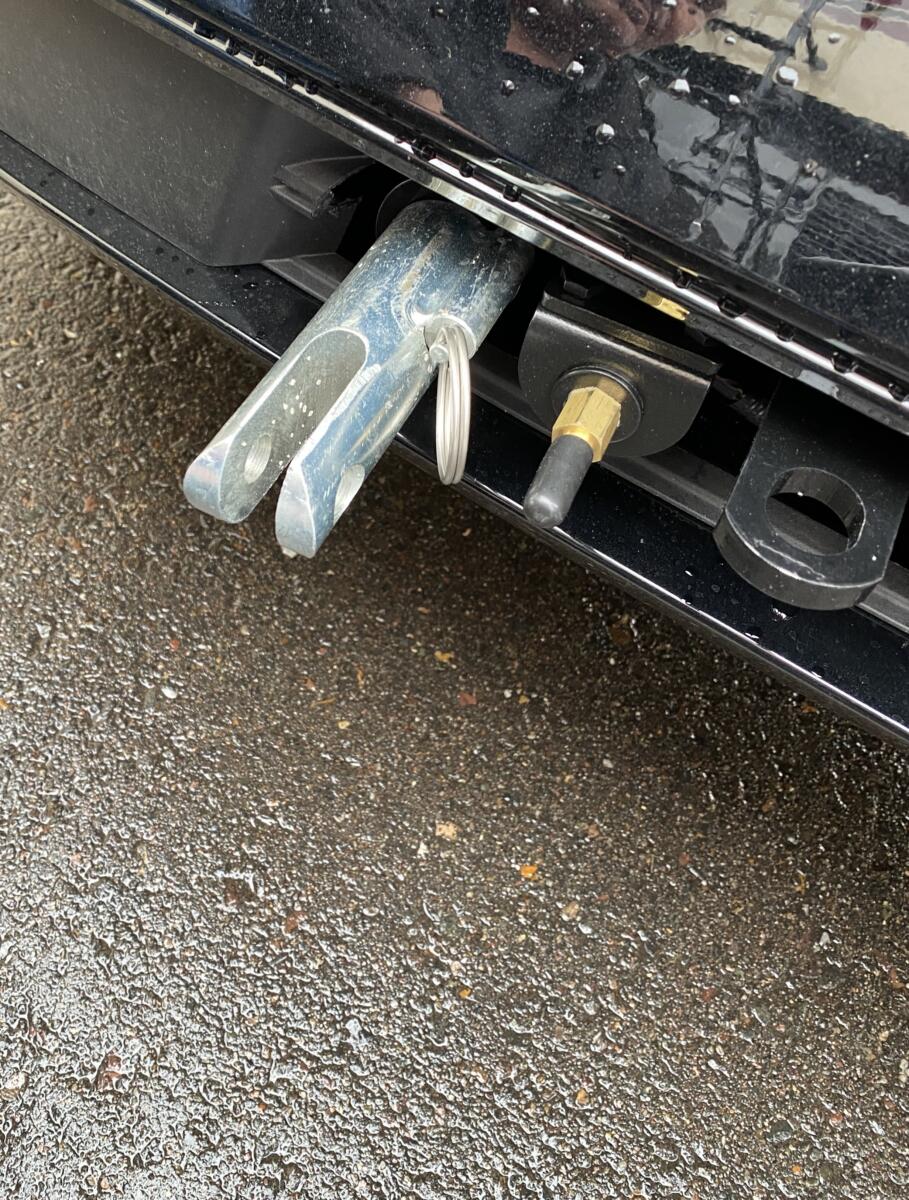

We already have a Roadmaster tow bar on our Tiffin diesel motorhome and soon found out Roadmaster doesn’t have the base plate made yet. Roadmaster did offer to build one for us free of charge if we would take it to their Vancouver, Washington, manufacturing facility for a week. We decided we would just go with the existing Blue Ox baseplate with Roadmaster baseplate adapters.
We also wanted to utilize our existing air brake system on the motorhome and had a Demco Air Force One braking system installed.
Research
We researched several places in the Phoenix area that did tow install for wiring, baseplate and braking systems. I read a ton of reviews from actual customers, not just the reviews that RV shops posted. Also, I checked with our local RV storage area for recommendations. I could have contacted the local RV clubs for suggestions, too. Lastly, I went on the Better Business Bureau website to check for any red flags.
Previous flat-tow install mistake
The reason we were so diligent about research is because we made a major mistake last year when we had my husband’s 1999 Dodge Ram pickup truck set up to flat tow. We had bought the Roadmaster tow bar and Invisibrake from neighbors who were not towing a car behind their RV anymore, to replace our very aged Demco unit.
It was going to be a two-month wait to get in anywhere, and the $4,500 install fee was a surprise. We started looking for mobile techs and found one that could come immediately for $1,500 (red flag!). At that point, he said he had never installed this system and had to leave because a customer was screaming at him to fix a tow system he had installed the day before. Lesson learned: We should have waited.
Somedays he showed up, some days he did not, but he finally did get it together after handing him the instructions. It worked, but looking under the hood the wiring did seem a bit chaotic. We made it over some major mountain passes, back to Minnesota and our usual tow bar experts. After another $700, the wiring was fixed.
Narrowed down to two choices
This time, we narrowed the search to two choices. Both could get us in quickly. I was concerned about that, but my husband assured me it was because it was right before Christmas and shops are usually dead during that time and need work.
Both places had great reviews and quickly sent estimates. One was about $1,000 cheaper but did not include items in the estimate that we had not considered. We went for the one that offered an automatic battery disconnect that could be pressed from inside the car. Also there was a battery minder along with a charge wire so that, similar to a battery tender, it would regulate the charge of the batteries. Along with the estimate, they sent photos of how the installation would look on an actual Blazer like mine, product info on the various components and warranty info. They were also a 24-year family business, and we liked that. We are happy that we did go with Southwest RV in the Phoenix, Arizona, area.
Cost

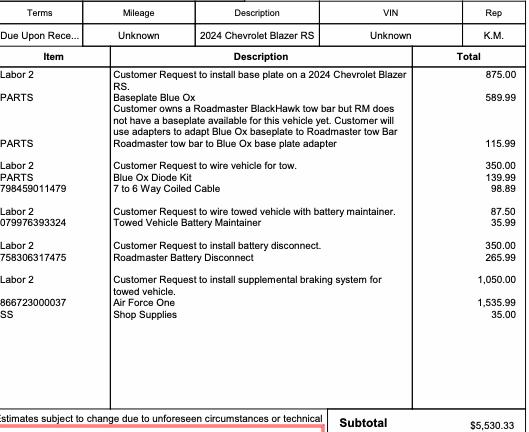

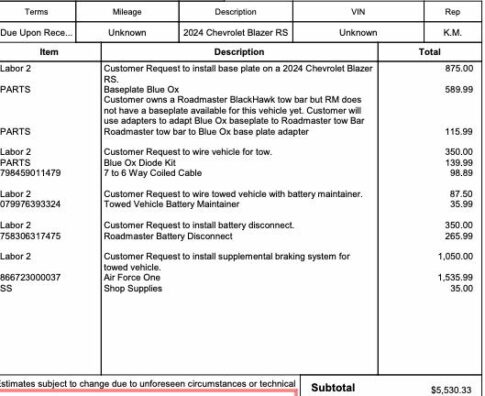

Some of you have asked for their cost estimate, so here it is. We did go with the extras of the push button battery disconnect and battery minder.
How it works

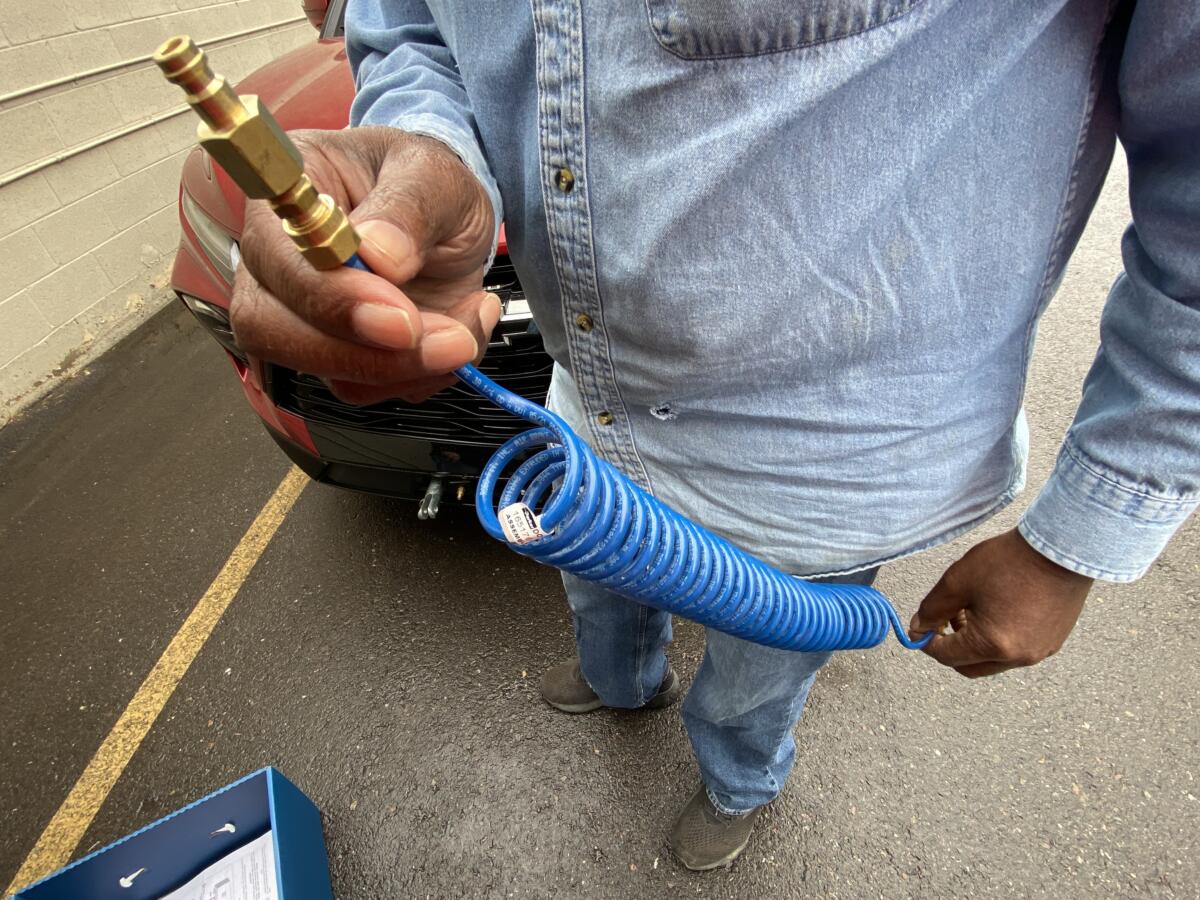

Air Force One utilizes the air braking system of our diesel pusher. The engine on the motorhome drives the air compressor and feeds two tanks. When started, the air compressor fills each tank to 120 psi and a governor shuts it off. Tanks are the reserve capacity. When braking, the brakes apply air pressure from the tanks. When the tanks get to 90 psi, the air compressor will fill the tanks again. The Air Force One system adds an additional tank with reserve capacity. When braking the motorhome, the brakes on the car are being applied proportionally to the motorhome.

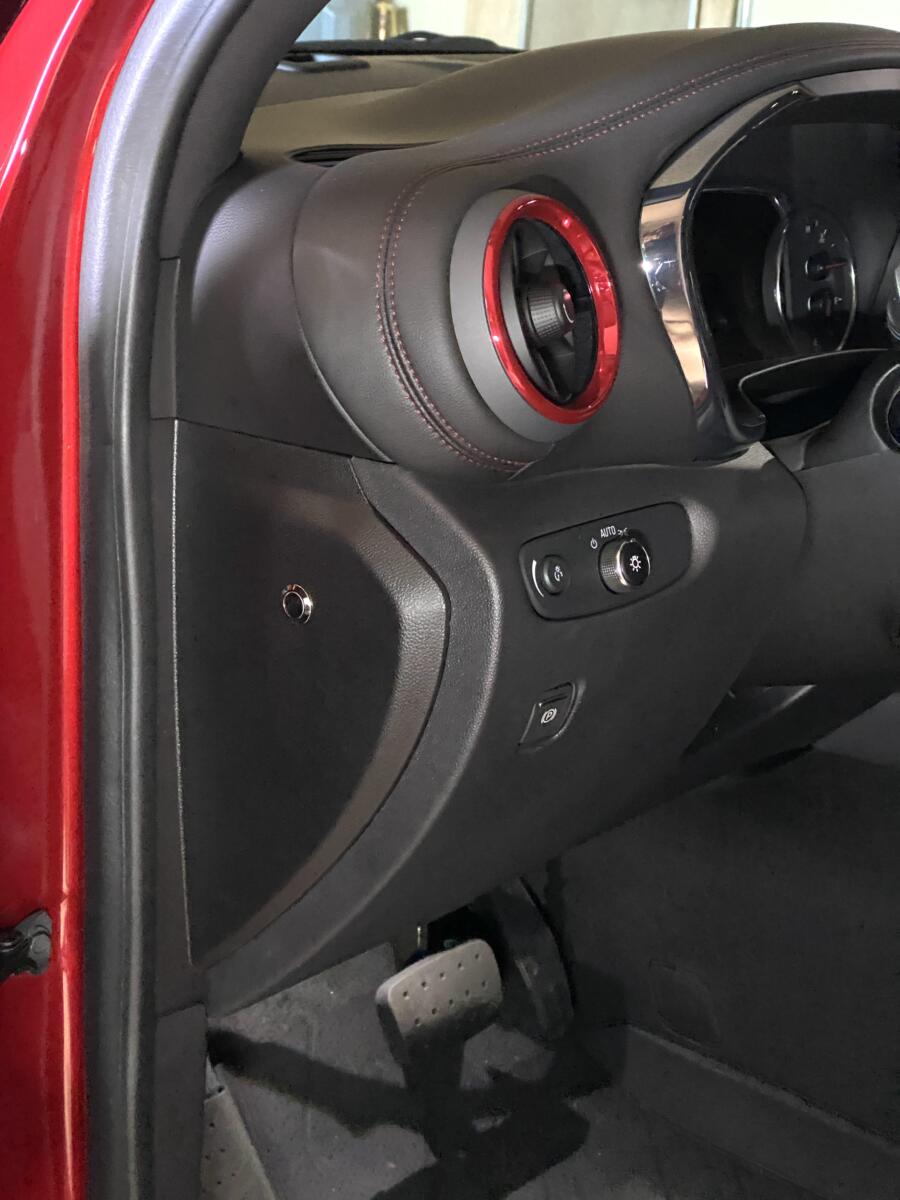

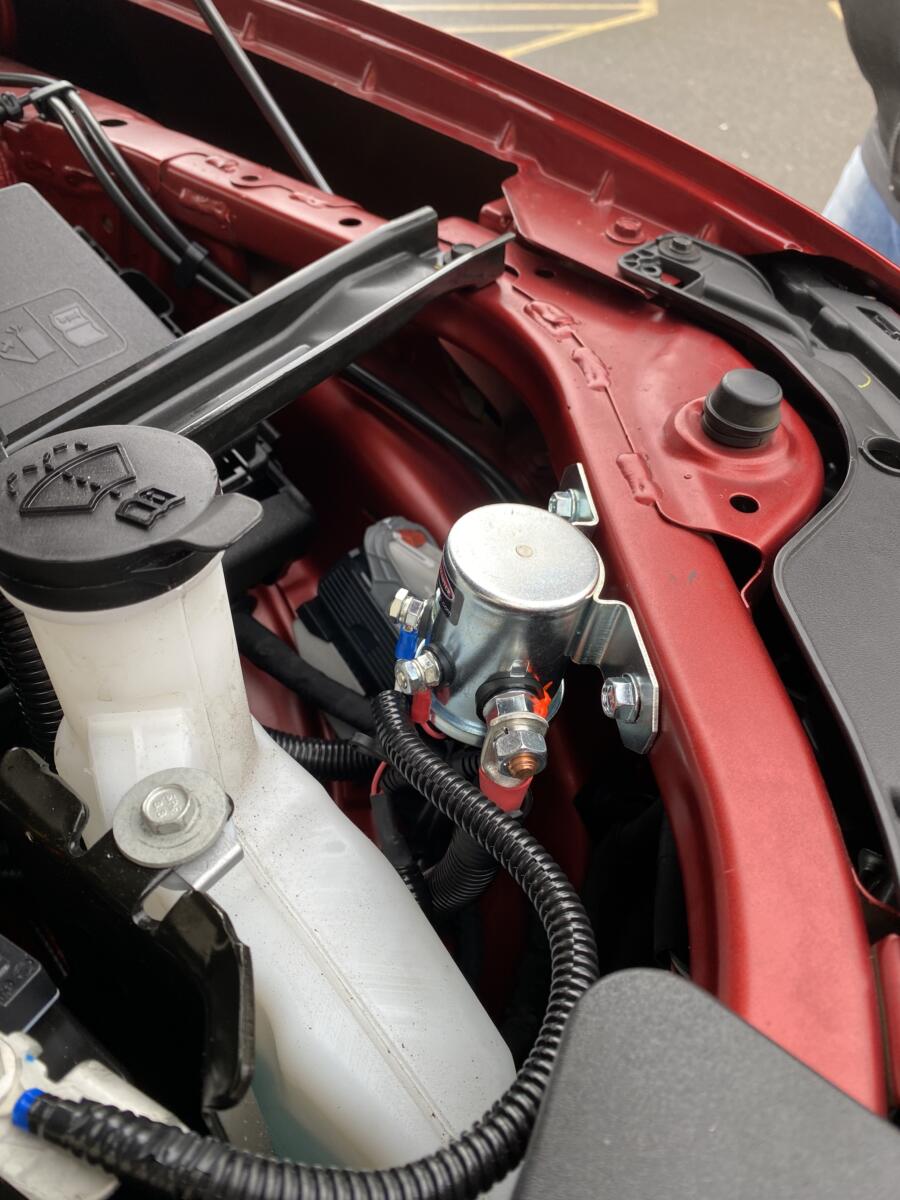

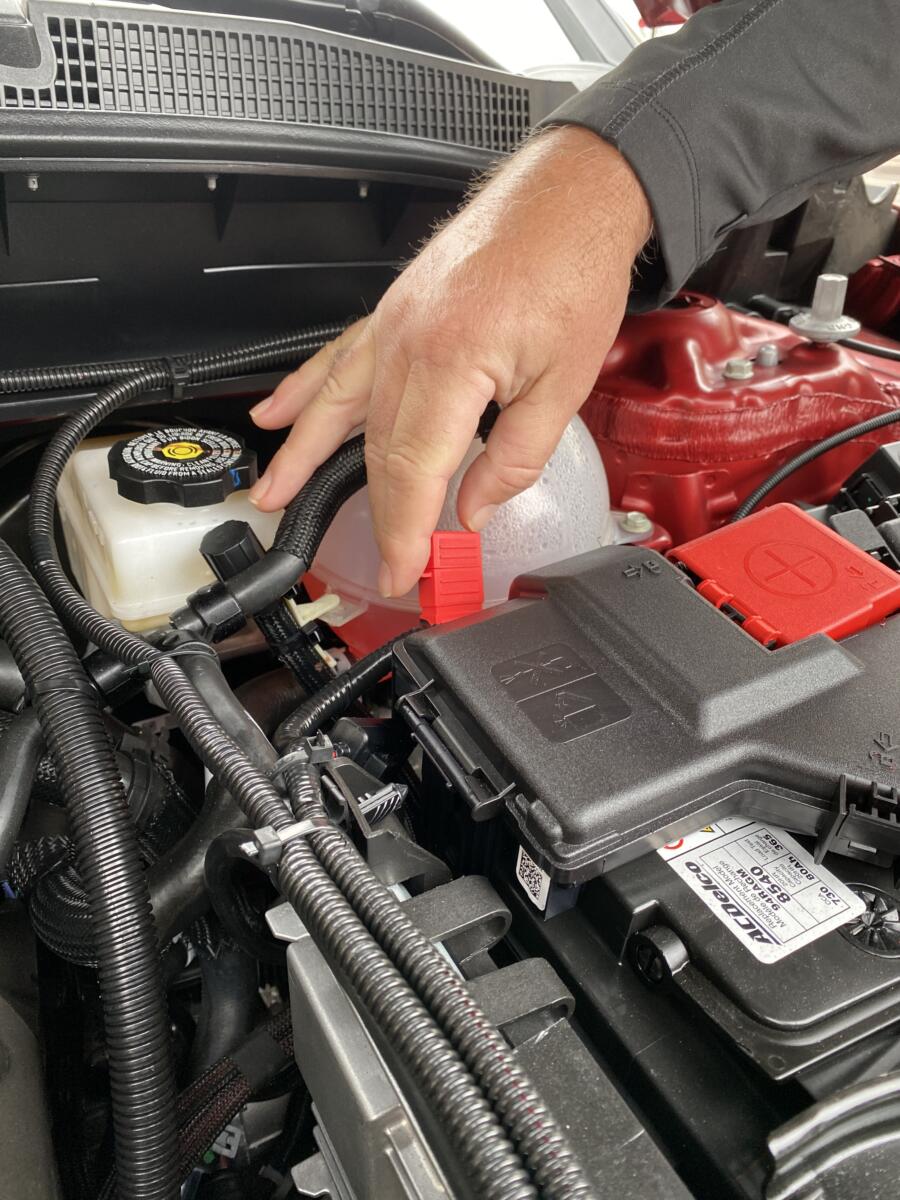

Battery disconnect is basically a simple relay. When connecting the battery to power the car, push the button and two points are magnetized, drawn together, and connect the battery. Push again to demagnetize and pull apart to disconnect. As this is new to us, I wanted to make sure there is a workaround in case of failure. It is merely bypassing the disconnect, if needed.

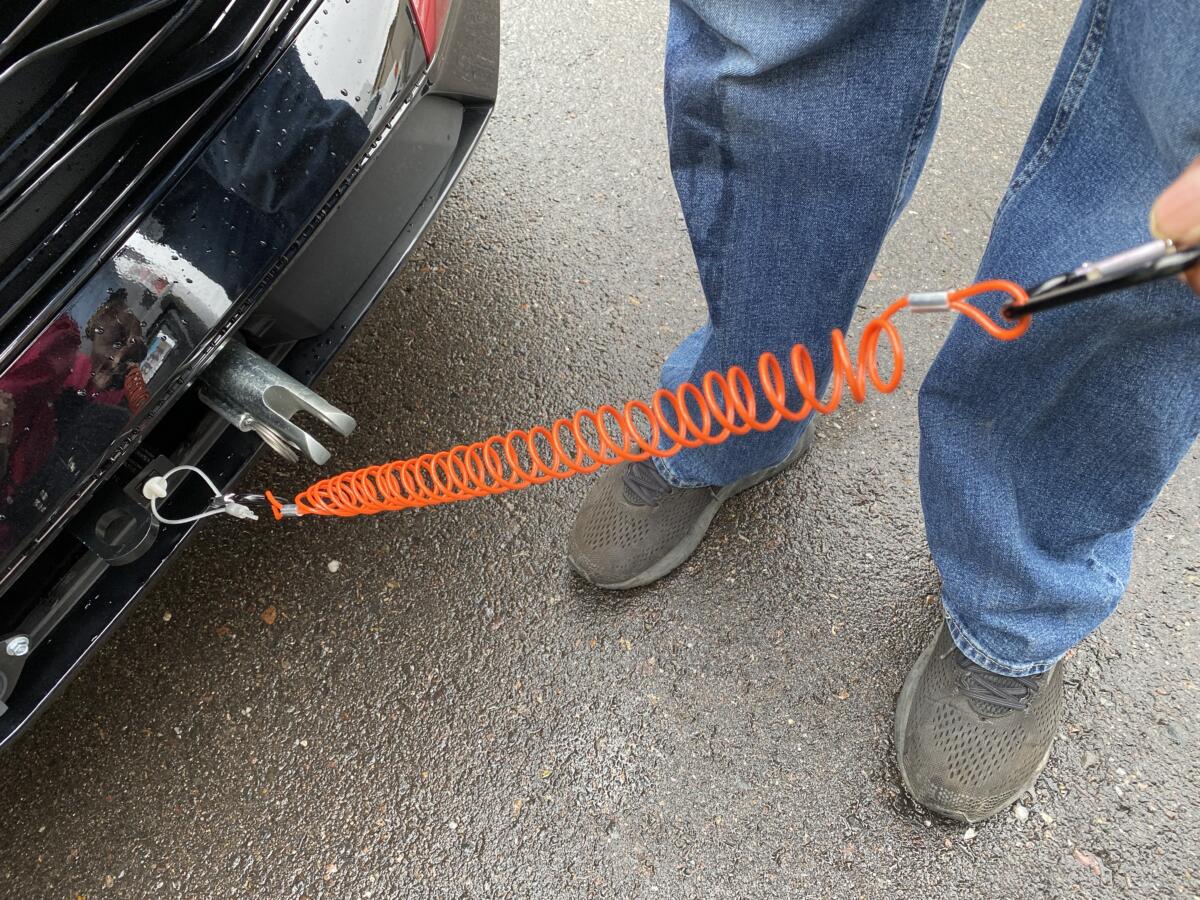

The emergency brake and disconnect is basically there to stop the vehicle if disconnected from the motorhome when traveling. It is a rather simple concept. There is basically a connection from the car to the motorhome that, if pulled out of the car when traveling, will instantly apply the brakes to the car to stop it.
Lights and battery charge is done through a cable connecting the seven-pin outlet on the back of the motorhome to the car baseplate. It sends info from the motorhome to the car lights, turn signals, and brake lights. We also had a battery minder installed with the charge line from the motorhome. The minder will keep the car from overcharging or undercharging.
Set up and testing
They were very conscientious about explaining everything about the flat-tow install including set up and everything we’d need to know about towing.
Flat-tow install test drive
Hooking up to the motorhome was easy and the test drive went well. I sat in the car in the parking lot as my husband drove the motorhome and could hear and feel the brakes in the car as the motorhome braked. It was much smoother than the Invisibrake on the truck.

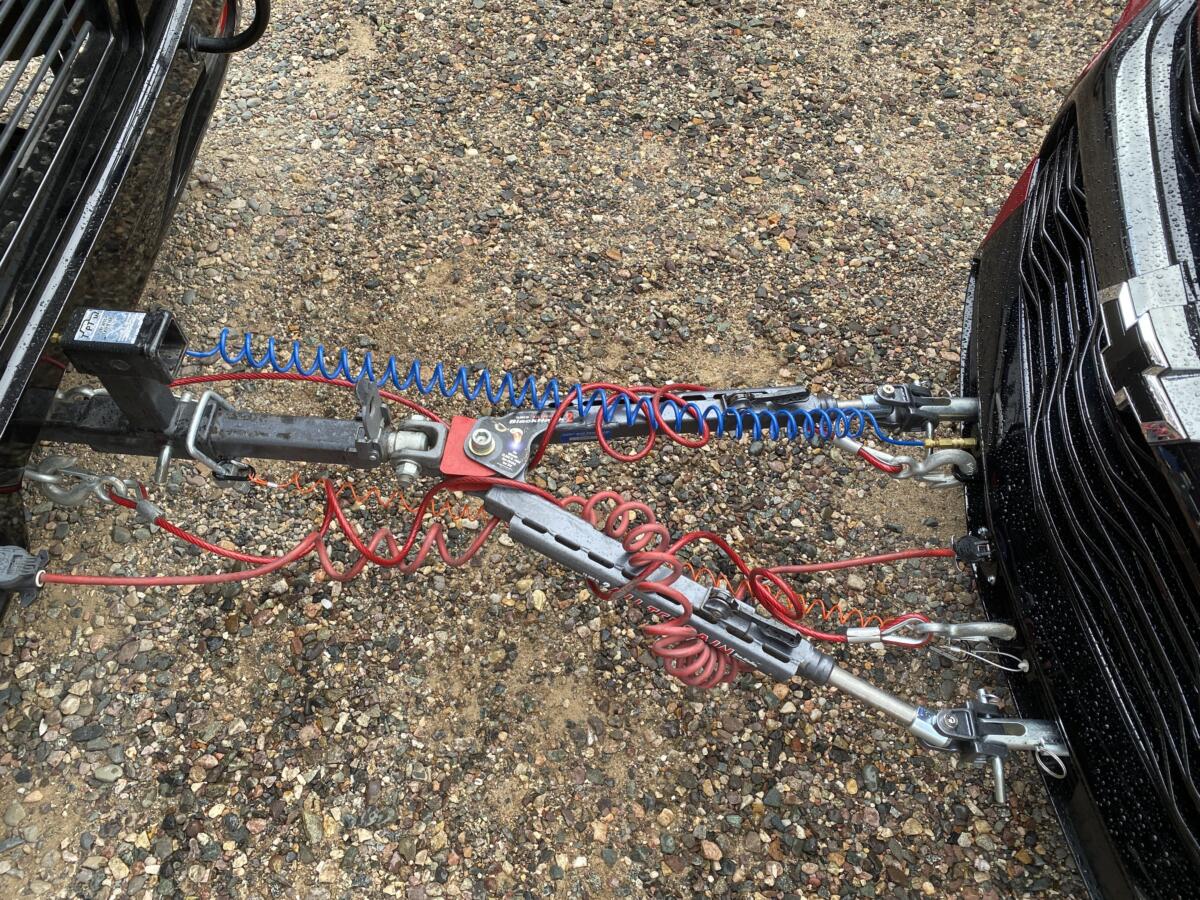

We still need to figure out how to neaten up the wires and cables going between the car and motorhome. Perhaps others with this type of installation have some advice for us.
First impressions of our flat-tow install

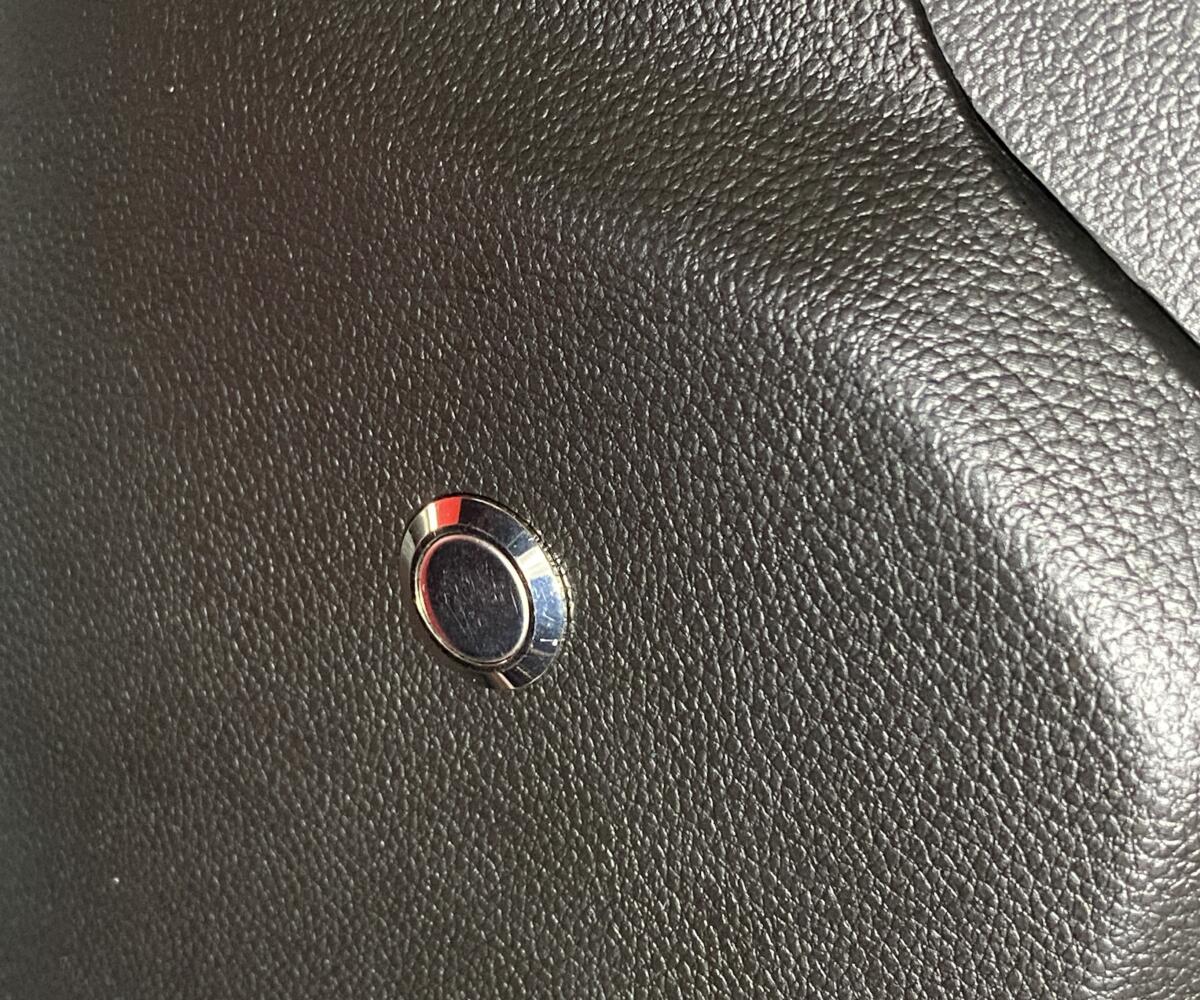

I’m not sure of the push button battery disconnect yet. It took two pushes to get the car started again. I will contact the shop to check out a workaround in case the car doesn’t start. I’m thinking a low-tech mechanical under-hood battery disconnect may have been a much cheaper and better option. We’ll see.

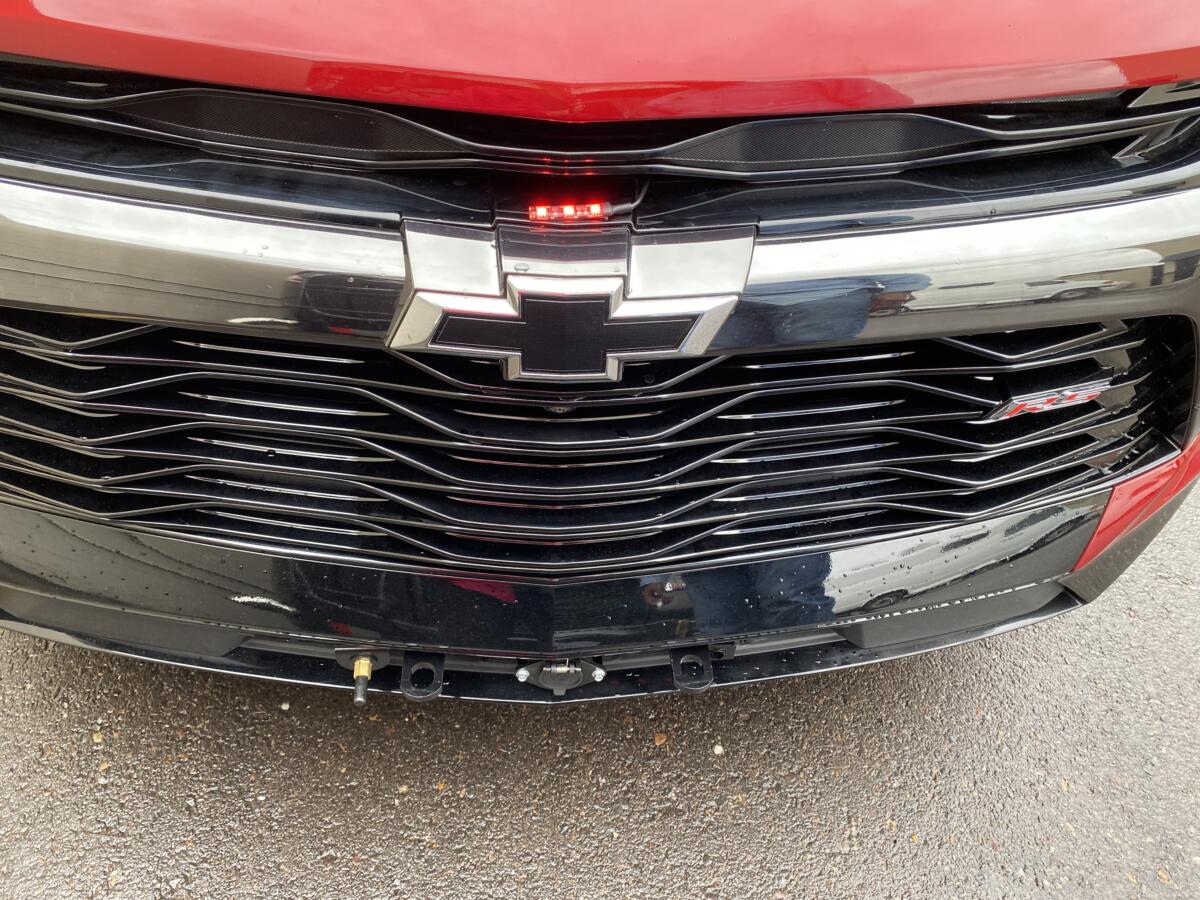

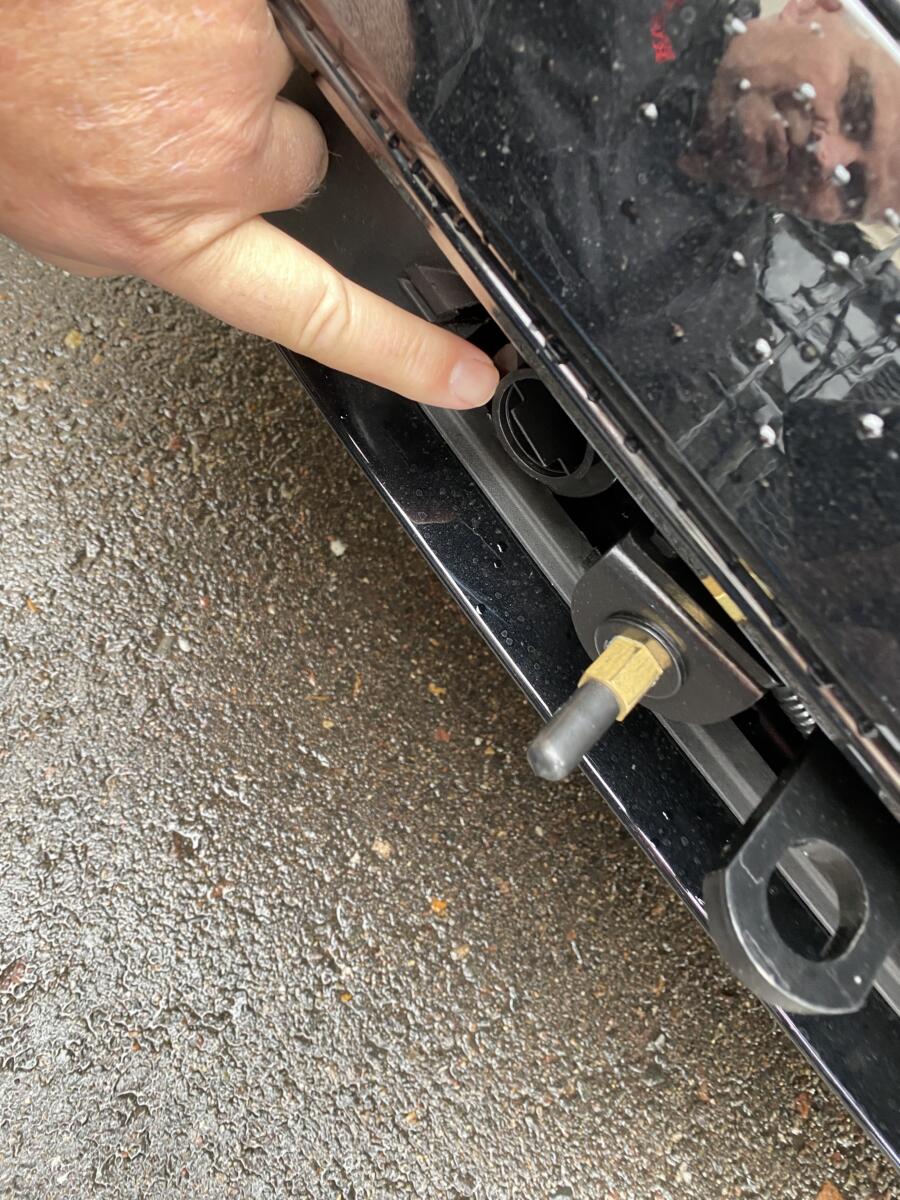

The base plate is low and we bought a 6″ drop bar. I found out we did not need it when hooked up to the motorhome. I didn’t want the drop to dig into the ground when the motorhome airbags deflate before leveling.
But I don’t like that we can’t lock the doors once the battery is disconnected from the inside. I had not thought about that ahead of time. I will need to figure out how to use the “take apart the door handle and use remote manual key” if it’s an issue when towing. At least the glove box locks when the battery is disconnected.
Quartzsite, here we come!
We are leaving for a few days to boondock in Quartzsite next week in time for the big show. Will report back if there are any issues.
