Today’s RV review is of the new-for-2026 Flagstaff Micro Lite 25FBD. This is a floor plan that we’ve looked at from other builders, including Keystone in the Keystone Cougar 22MLS and in Grand Design’s Imagine XLS 22MLE. It’s a pretty popular floor plan for a couple’s camper as it offers theater seats and a dinette in a relatively compact overall package.
In fact, my buddy Josh Winters, the RV Nerd, has long thought the Cougar 22MLS was one of his favorite travel trailer floor plans. Now you can get it as a Flagstaff or as the identical Rockwood Mini Lite 2522FB. So why buy this trailer instead of the other two mentioned?
You know where I’m going with this. Let’s start at the road.

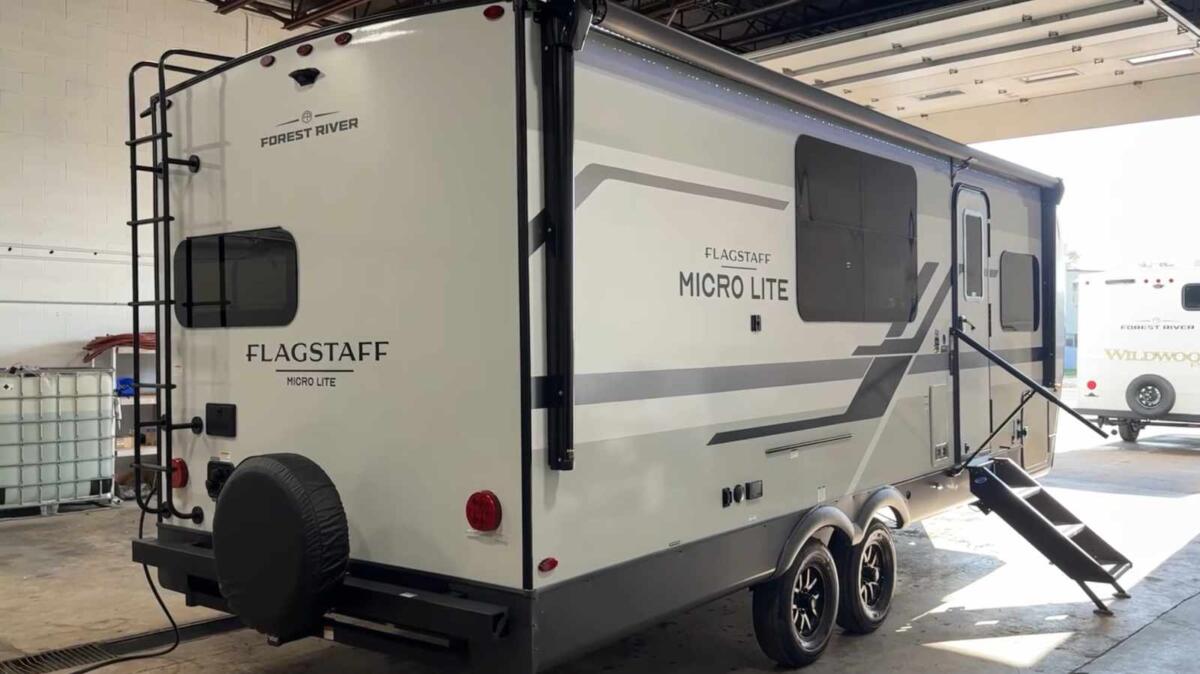

Start at the road with the Flagstaff Micro Lite 25FBD
I was recently speaking with a group of people about RV shopping and shared my favorite way to start—at the street. Why? Because what’s under an RV will often make the difference in how long the thing lasts.
For example, where the rubber meets the road, here you have Goodyear Endurance tires. Those are filled with balancing beads that arguably balance the tires now and as they wear. There are also tire pressure monitors inside the tires.
The suspension on these is a Dexter torsion axle system. That provides a smoother ride, meaning that your poor trailer is more likely to withstand the awful roads we all seem to have around (under) us.
Rack-and-pinion slide mechanism
The main slide mechanism on this is a rack-and-pinion type. That is my favorite because it tends to be the most reliable, and also it is the easiest to manually override if something does go haywire. There is a second slide in this rig, and that is a Schwintek mechanism. But it’s just a wardrobe slide, so it’s relatively light—and really what these Schwintek systems were designed for in the first place.
Flagstaff vacuum-laminates its walls in-house. It uses a man-made substrate under the fiberglass outer wall and then foam and a welded aluminum structure. The glues used by the company are a higher-end glue. Yes, there are different grades of glue available. Oh, and I like that the walls are vacuum-laminated rather than pinch rolled.
There are also frameless windows, which require less maintenance. The roof on this is an Alpha Ply system, which tends to require less maintenance and lasts longer. Also, the membrane itself is warranted for life, although it’s usually the seals that need upkeep. Less so with this system, but any membrane roof and sealant system is going to need at least routine visual inspection. The roof build is also vacuum-laminated using aluminum trussing—stronger and lighter.
Single connection point for sewer
One thing, though. There is a single connection point for the sewer, but the valve for the black tank is under the main slide and faces forward. So, yes, it’s a giant pain in the pull valve, as mine is configured the same way. Nothing funnier than an old fat guy (me) crawling under the trailer to open the black tank valve and saying all the words his mom told him not to. Yes, I have considered upgrading to a power gate valve system, but $200? Yikes.

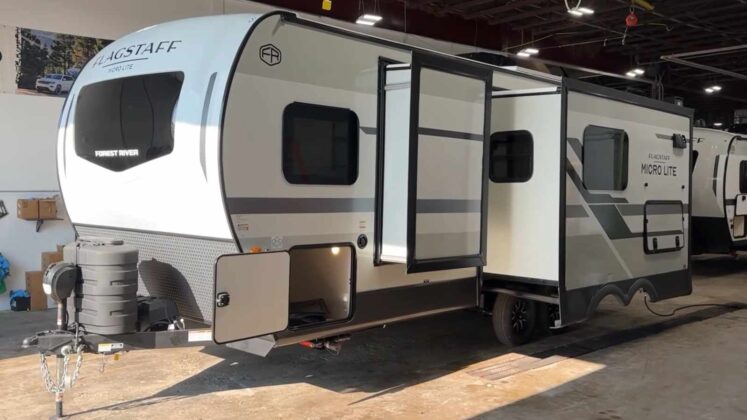

If you only look outside, without ever opening the door, you’ll see why I like this brand—lots of things just done well.
Inside the Flagstaff Micro Lite 25FBD

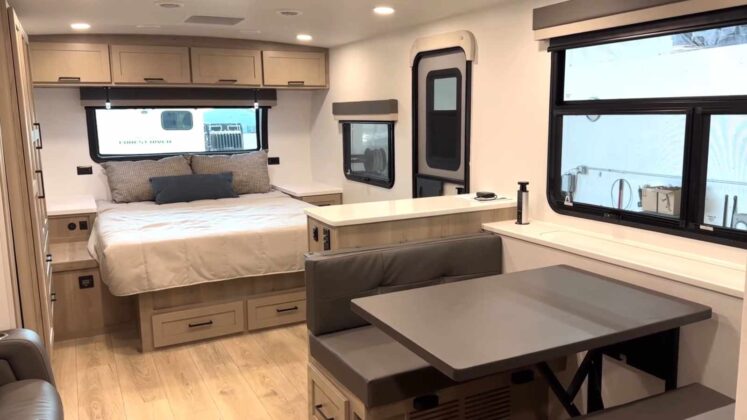

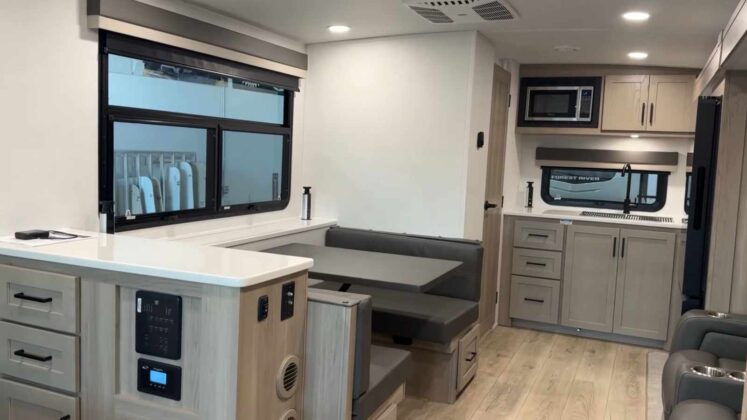

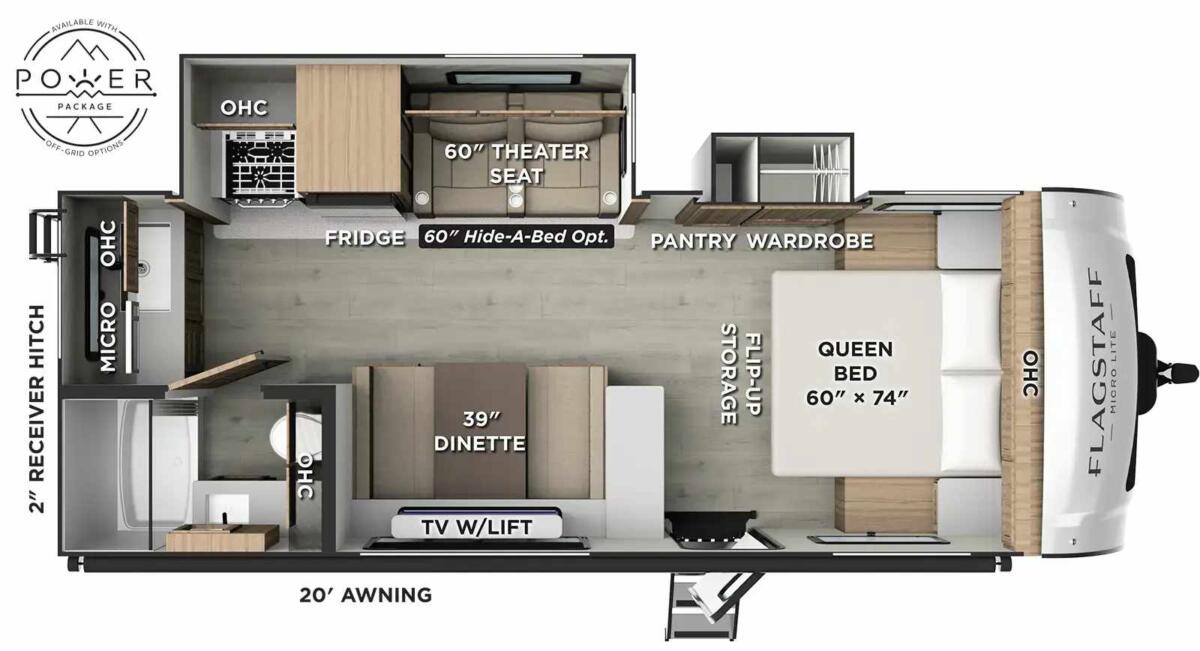

Open the door, and you’ll see that there are theater seats across the way from you and a dinette to your left. Just inside the door are a few drawers, which are a nice touch. You’ll also find the converter box here, as well as the control panel for the RV for things like lights and slide rooms and such.
The nice thing about this control panel is that you never ever have to tie a smartphone to it, but you can if you’d like. And then you can operate things remotely as well as check your tank levels and such. The panel’s lights themselves are motion-activated, so it only lights up when you’re near it. But I wonder, since it faces the bed, will nightly tossing and turning also enable the lights on the panel? Easy fix with painter’s tape, I guess.

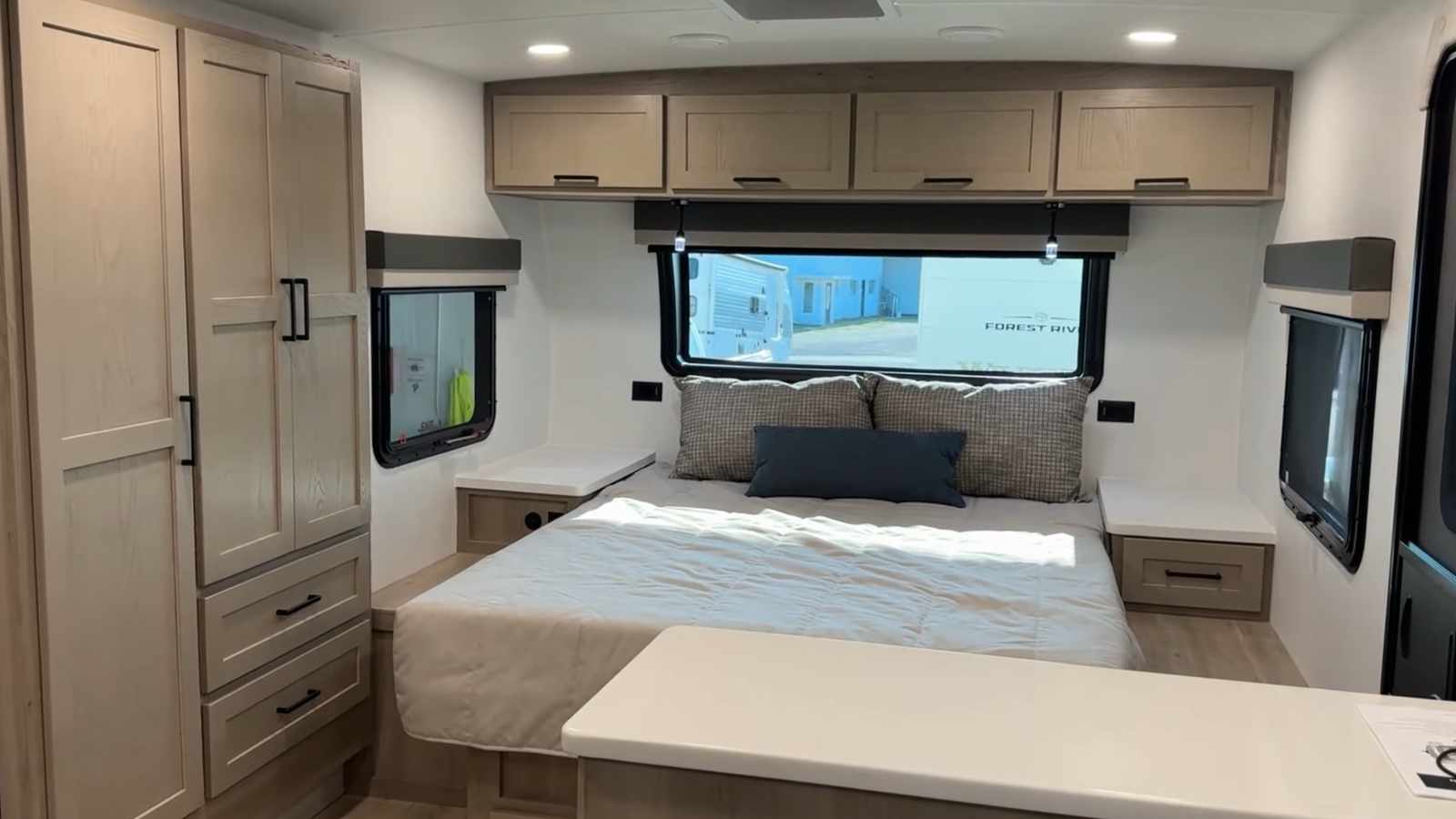

Speaking of the bed—it’s a 60 X 74 RV queen bed. There is hanging storage on both sides of the bed and a drawer on the camp side. The road side gets the drawers in the slide, and that’s also where you’ll find good hanging storage.
Main living space in the Flagstaff Micro Lite 25FBD

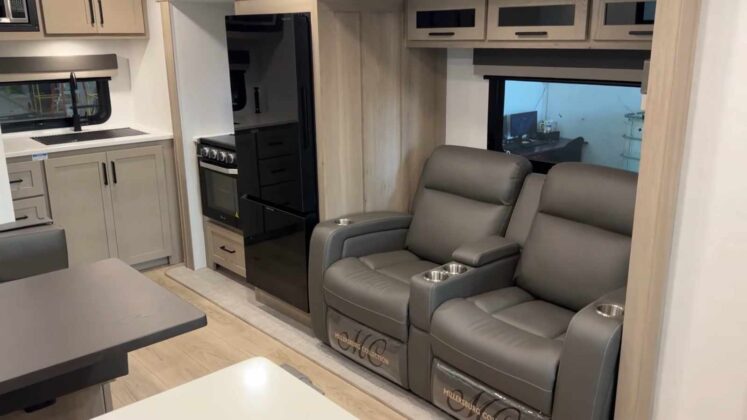

I had mentioned the theater seats, and those sit in the slide room on the road side directly opposite the dinette. That dinette can seat four and basks in the glow of a very large window affording good views of one’s campsite.

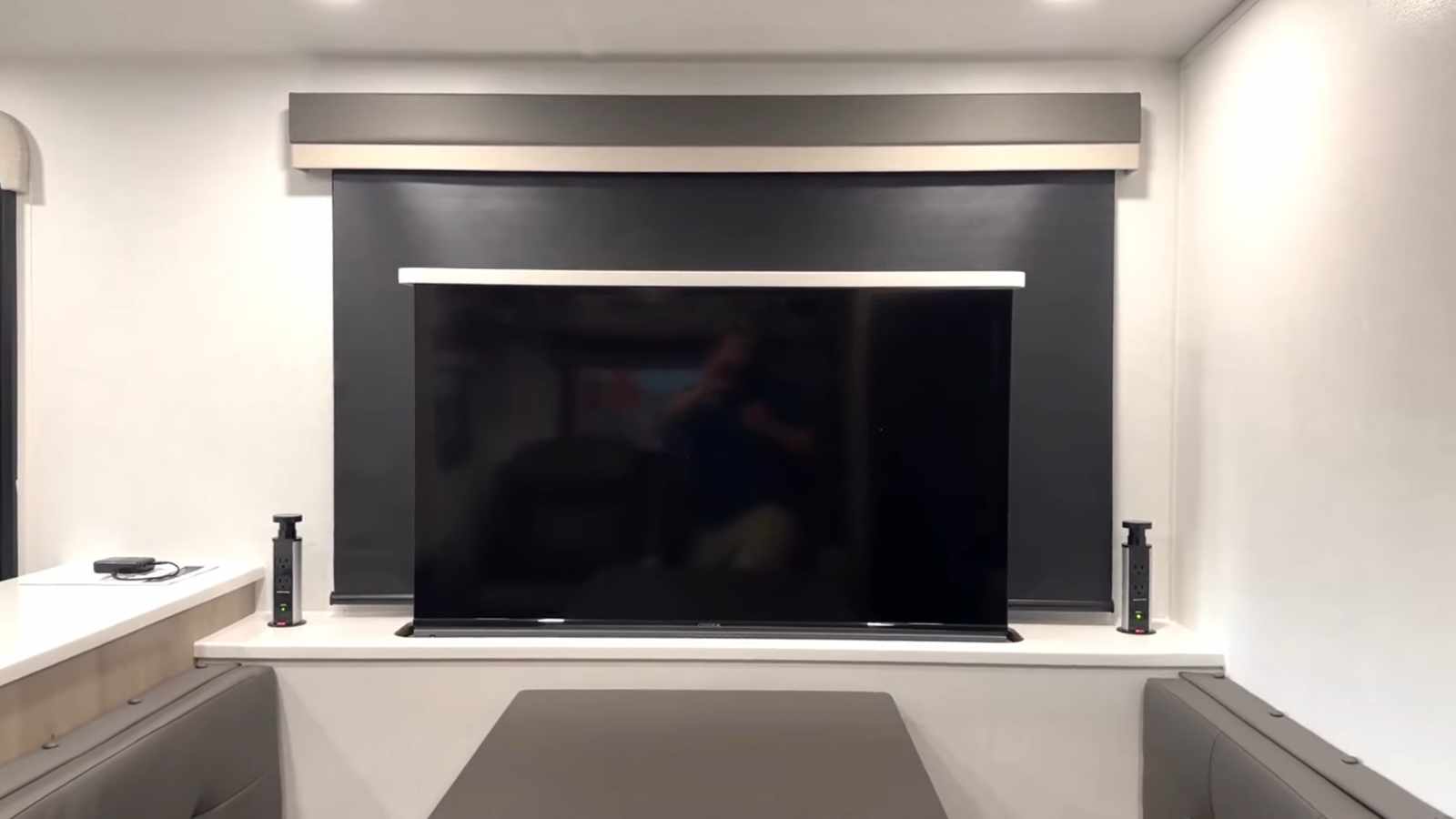

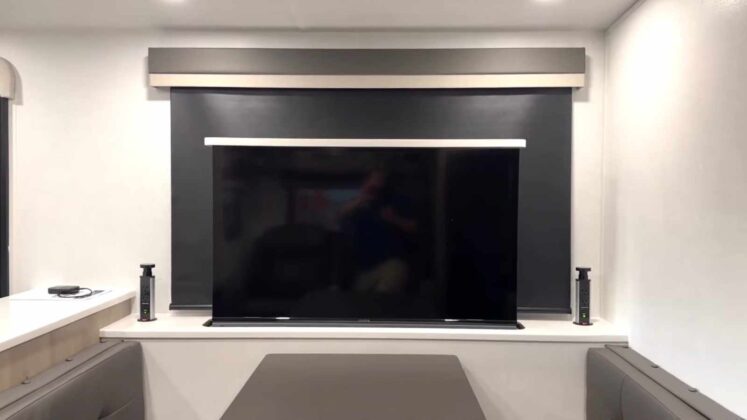

Should it be time to watch the StressLess Camping YouTube channel (or whatever else) there’s a 40” TV on a televator that can rise out of the wall by the dinette.
Cabinets are over the theater seats and the dinette, and there is a drawer under the dinette as well—a good amount of storage.
Kitchen in the Flagstaff Micro Lite 25FBD
The kitchen is at the back of this rig with a three-burner propane stove with a real 21” oven. There’s a 12-volt refrigerator, whose door can open from either side, over in the slide room. I have this same 12-volt refrigerator in my RV and have been quite impressed by how efficient it is. These things are definitely getting much better.
Along the back wall is the sink and counter space, along with plenty of drawers and cabinets for storage. Also, all the countertops in this RV are solid surface, which is the preferred material for this sort of thing.
One thing that some might not like is that the stove is sort of sandwiched between the sidewall of the slide room and the refrigerator. It does feel a bit enclosed, but it should be fine.
Bathroom in the Flagstaff Micro Lite 25FBD
The bathroom in this rig is at the back corner of the trailer. It features a rectangular shower with a glass sliding door, a porcelain foot flush toilet, and a sink with a bit of storage around it, plus some overhead storage. Overall, the space is quite usable, and I like that Flagstaff uses a 12-volt high-performance vent fan in here.
Boondocking and travel access
One of the consequences of having two slide rooms in a trailer this size is that the main slide blocks access to the kitchen and bathroom when closed. This won’t be a big deal for some travelers, but it will for others.
As for off-grid camping, Flagstaff products are particularly well-suited to the task. I like that the company is still using a proper gas-electric water heater with a tank. That means you don’t have to run a faucet at full blast to get hot water like you do with those tankless water heaters.
Also, I like that there’s a Showermi$er system, which redirects water back into the system when you’re waiting for hot water in the shower. I use this frequently myself.
But the best part of it all is that Flagstaff’s Power Package is available, which includes 1,000 watts of solar and a 460 amp-hour Mastervolt power system. This package is an exceptional system that can power these RVs off the grid quite well. I also have this system in my trailer and like it quite a bit.
My thoughts on the Flagstaff Micro Lite 25FBD
There are a lot of things I really like about Flagstaff products in general and this trailer in particular. One of those is just the thinking at the company that favors higher quality components and processes over lower cost parts.
Another unique thing is Flagstaff’s owner’s manuals, which are specifically prepared for each trailer, so the components included on any specific trailer are detailed in the owner’s manual. I don’t know of any other RV company doing this.
I can see the fact that there is no backsplash nor side splash around the stove being a concern. This same wallboard in my trailer, and it seems to wipe off quite well. But I might also consider some aftermarket stick-on material for this space, just the same.
Overall, I think Flagstaff has done a good job with this floor plan. Of course, I’d love to know your thoughts.
