An easy multimeter master class: Save hundreds of dollars in RV repairs

In the video at the end of this post, the RV Repair Woman walks through how RVers can use one cheap tool, a multimeter, to check batteries, converters, thermostats, water heaters, and fridges. With a little practice, that little tool can save you hundreds of dollars and a lot of stress.

Many RV shops bill like every problem is a major surgery, yet many common RV failures come down to power not getting where it should. Instead of paying a tech to poke around for five minutes, RV owners can learn to do the same checks themselves and keep that money for fuel or campground fees.

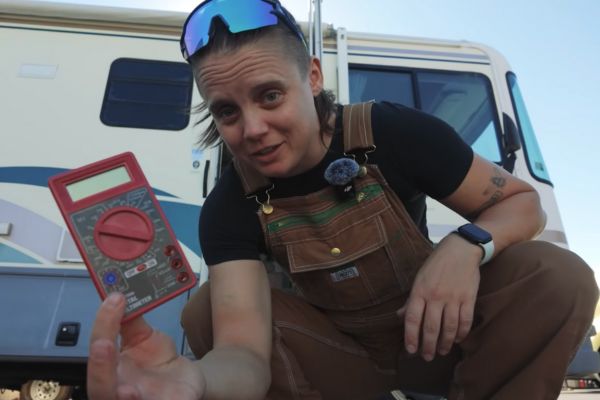

The star of the show is a basic multimeter. It measures voltage and a few other things, and it fits in a pocket. The one shown in the video costs about $7 at Harbor Freight. Fancy meters can cost a couple of hundred, but a basic model can handle these tests just fine and takes almost no room in an RV.

The power in versus out rule

This simple idea explains most electrical troubleshooting in an RV: Power going into a part and not coming out again means that part is probably the problem. Once someone understands that rule, a multimeter turns into a map for finding the bad piece.

Mastering the DC voltage test

The main setting RV owners need is DC volts, usually marked DCV. On cheap meters, the user chooses a range. Since RV house batteries sit around 12.5 volts, the 20-volt range is the right choice.

A simple setup sequence looks like this:

1. Turn the dial to DCV.
2. Select the 20-volt range.

After that, it is ready to start saving money.

First stop: Checking the batteries

If several things in the RV stop working or act strangely, the first suspect should be the batteries. They can stay in place for testing.

Quick steps:

1. Unplug the RV from shore power.
2. Make sure a few lights are on so there is a small load.
3. Put the black probe on the negative battery post.
4. Put the red probe on the positive post.

For common lead-acid RV batteries, a healthy reading is around 12 to 12.5 volts.

What the readings mean

Here is a simple way to read the numbers:

• Around 12.5 volts: Battery is in decent shape.
• Under 12 volts: Considered dead by most techs.
• Around 8.5 to 12 volts: Some people try charging to see if it recovers.
• Under 8 volts: That battery is not coming back and should be replaced.

This quick check takes about a minute and is exactly the kind of thing many shops charge for.

Testing the converter

If a battery dies while the RV is plugged into shore power, attention should go to the converter. The converter is the box that charges the batteries whenever the rig is plugged in, similar to a smart battery tender that runs often. It usually sits near the fuse and breaker panel, sometimes behind it.

How to probe the converter

There is no need to dig the converter out to test it. With the RV plugged into shore power:

1. Leave the battery wired in place.
2. Put the black probe on the battery negative post.
3. Put the red probe on the battery positive post.

A good converter will push the voltage up to about 13.5 volts at the battery. Charging needs a higher voltage. If 13.5 volts is present at the battery, the converter is probably fine, and the battery may have just aged out.

If the converter is easy to reach, the same reading should appear on its two large output wires, usually one red and one black.

If there is no higher voltage at the battery when the RV is plugged in, the converter is probably not doing its job. In that case, replacement is often the next step. It is also worth remembering that even with a good converter, old batteries still eventually die.

Troubleshooting a thermostat that kills the A/C

Many RV owners assume a dead air conditioner means a bad A/C unit. In the video, the RV Repair Woman got about $1,000 off the price of her RV because the seller thought the AC had failed. After a little testing, it turned out to be a thermostat issue instead.

The same idea applies to furnaces. If the A/C or furnace refuses to turn on, the thermostat is a good place to start.

Opening and probing the thermostat

First, set the thermostat to cool, high fan, and turn the temperature as low as possible so the A/C is running. Then pop the cover off. It can feel stubborn, but it will come off with some gentle pressure and pulling.

Once inside:

1. Set the meter to DC volts at 20.
2. Put the black probe on the blue wire.
3. Put the red probe on the red wire.

That red wire is power coming into the thermostat. Around 12 volts here means power has reached the thermostat. No power means the issue is upstream, often the battery or a fuse.

Next, keep the black probe on the blue wire and move the red probe:

• Blue to yellow checks the signal to the compressor on the roof A/C.
• Blue to green checks the signal to the A/C fan.

With the A/C calling for cooling, both should show about 12 volts if the thermostat is working. If power comes in on the red wire but nothing comes out on yellow or green, the thermostat is likely bad.

Many of these RV thermostats also have a tiny fuse on the circuit board. Someone who knows how to test fuses, which is covered in another lesson by RV Repair Woman, can check that too. If the fuse is good and there is still no output, a new thermostat is usually the fix.

Diagnosing a Dometic water heater

When a Dometic water heater will not fire, the same power in versus power out rule applies. At the water heater, the black probe can go on a ground screw on the metal frame. Then the red probe follows the wiring one piece at a time.

One of the first parts in the chain is the thermostat on the water heater, often labeled T-stat. The tech would:

1. Put the red probe on the wire going into the T-stat and look for about 12 volts.
2. Move the red probe to the other side of the T-stat.

If power goes in but not out, the T-stat is the likely failure and should be replaced.

Next in line is a thermal fuse or thermal cutoff. It is a safety device that opens if things get too hot. The same test works there. Check the wire going in for 12 volts, then the wire coming out. Power stopping at that part means the thermal fuse has blown and needs to be replaced.

From there, someone can keep following the wire through each safety and control part on the heater until the spot where power disappears shows up.

Fixing RV fridge power problems

RV fridges also depend on that 12-volt supply. If the fridge is dead, the back access panel is the next destination. With the panel open, the black probe again goes on a ground screw on the metal frame.

Then the red probe goes into the 12-volt terminal block for the fridge. If there is no 12-volt reading here, the problem is upstream, often a fuse or the batteries.

Once 12 volts reach the fridge, the next pieces in line are usually small heat sensors. There are often several of them in RV appliances.

The pattern stays the same:

1. Red probe on the wire going into the heat sensor.
2. Red probe on the wire coming out of the heat sensor.

If power stops at a sensor, that sensor is the likely cause and can be replaced. The same process can continue through the next heat sensor and into the circuit board.

Next steps for new multimeter users

A cheap multimeter and a little confidence can take the fear out of RV electrical problems. The same simple routine keeps showing up: Set DC volts, find a good ground for the black probe, and follow power in and out of each part until it stops.

Here is the multimeter RV electricity expert Mike Sokol recommends.
