RV review: Brinkley RV Model Z 2670—The newest and smallest

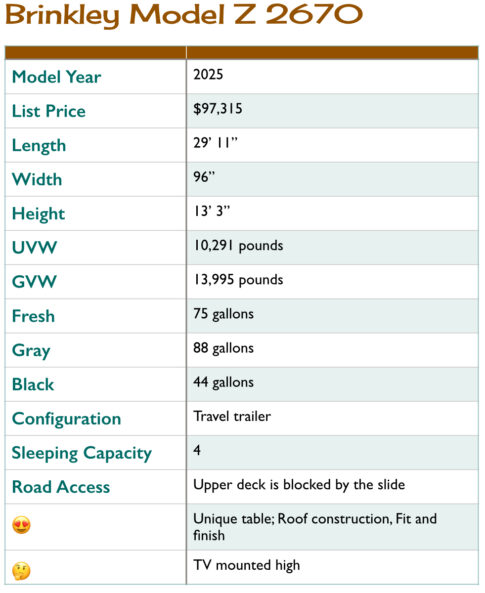

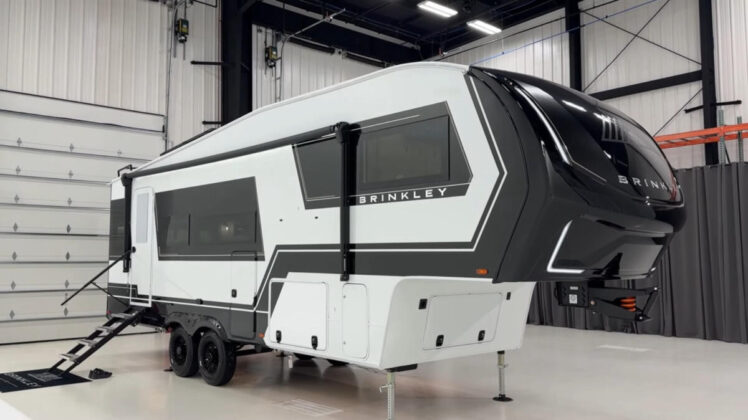

Today’s RV review is another preview from Brinkley RV, this time the Model Z 2670 fifth wheel. This is the latest offering from Brinkley RV and is also the smallest and lightest fifth wheel they make. Now, before you jump to conclusions, know that this fifth wheel is not light. While it is under 30 feet in length, it’s over 10,000 pounds in dry weight.

So why? A lot of reasons, but know that Brinkley makes things that are pretty substantial and this model is no exception. So all those fifth wheels we’ve been talking about lately with the “frame flex”—which is really frame failure—that’s far less likely to happen here.

From the road up in the Brinkley RV Model Z 2670

This trailer rides on H-rated Cooper tires with internal tire pressure monitoring (TPMS). It does use traditional leaf springs, but those are attached to a Road Armor suspension system which does a good job of absorbing motion and vibration.

The underbelly of this trailer is enclosed with heat ducted into the space as well as 12-volt tank heaters. The gate valves for the sewer dump are also inside this enclosed space and are electrically operated. In other words, no doing the black tank twist as you reach way the heck under the trailer to pull the black tank valve. You just push a button and you’re done. Son.

And while we’re talking about that, know that this trailer only has one connection point. There is also a tube to hold your sewer hose right adjacent to the termination point, so everything’s in one spot. Heck, there are even lights under here, although I hope, hope, hope that owners don’t leave these lights on all. Night. Long.

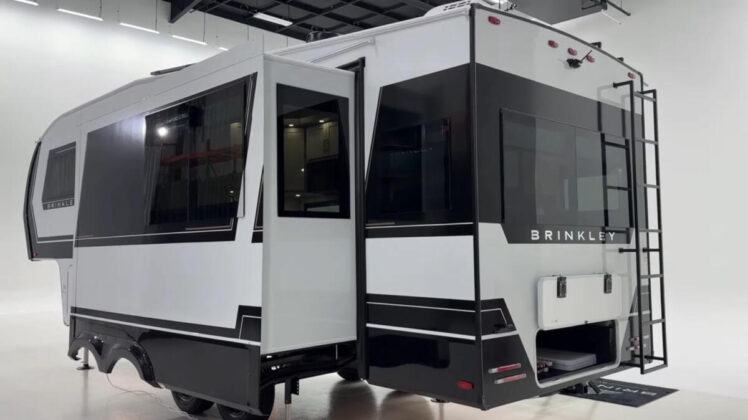

There’s also a fresh water hose built into this rig on a reel. All the exterior baggage doors feature magnetic hold-backs, but these magnets are color coordinated with the exterior. It’s like the Force—you can’t see it but you can feel it. There’s also a rear storage compartment on this model that is the perfect size for things like camping chairs and that sort of stuff.

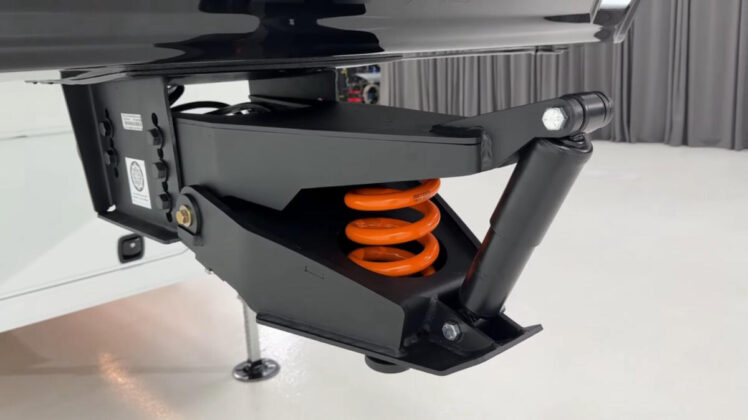

The model I saw had a new CURT pin box that featured a shock absorber and a coil spring. It reportedly provides much less bucking and vibration in the tow vehicle. This is part of a whole new series of components from CURT and I was happy to see this out there. More exciting stuff is coming.

Brinkley Model Z 2670 - 2025

1 of 12

What I like about the Brinkley RV Model Z 2650

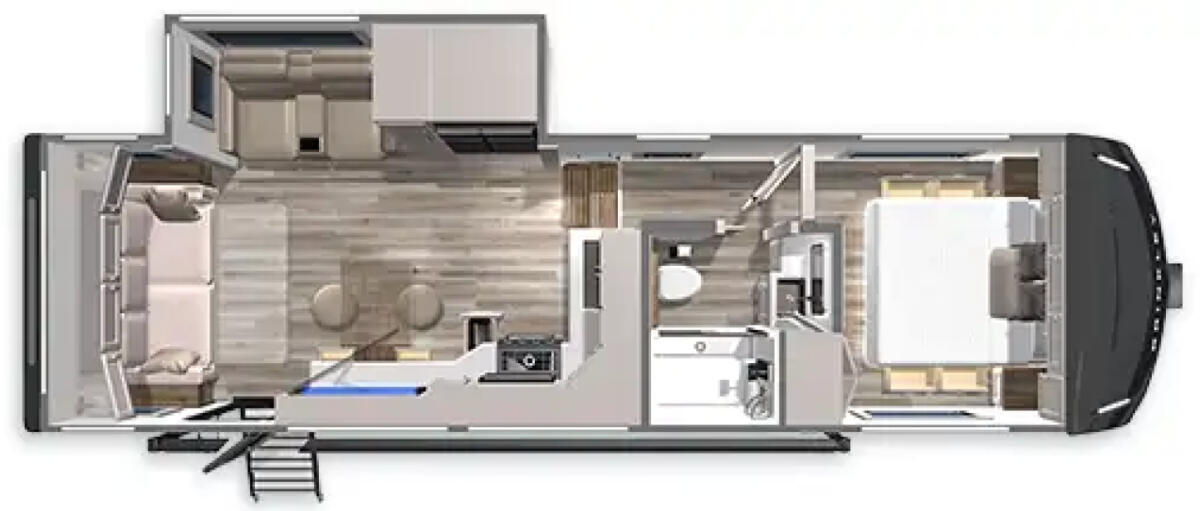

In some ways, this almost approximates the typical floor plan of what every fifth wheel builder builds, but then Brinkley goes and makes enough changes that it really stands out. The interior really has a high-quality feel.

The build quality on this is precise enough that there isn’t crown molding to hide rushed wall builds.

The windows are square frameless windows but they swing upward significantly and incorporate both night shades and retractable screens. Very different and just better. Much better.

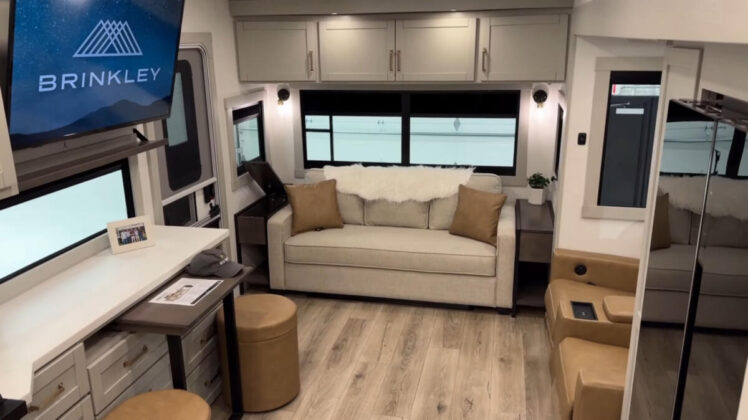

Along the back there’s a couch, of course, but there are tables on either side that flip up to reveal more storage. There is also a pop-up power wedge with household and USB outlets. And, of course, the couch turns into a bed.

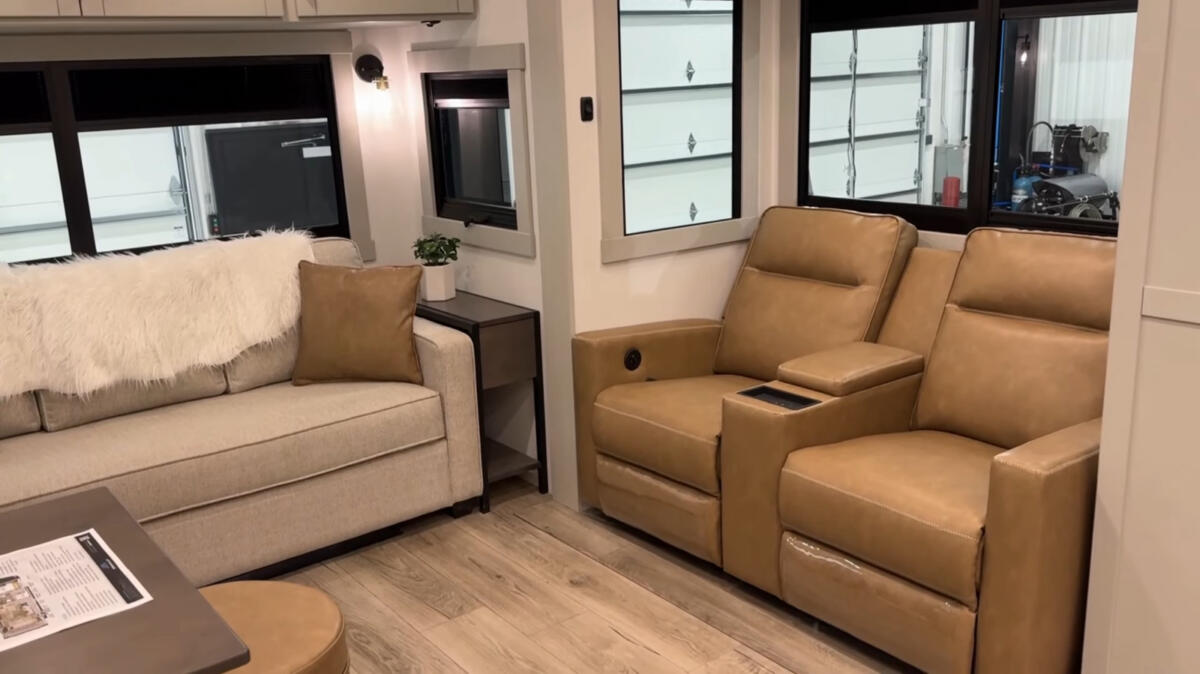

Over on the road side is a large slide, where you’ll find theater seats and the 12-volt fridge.

Kitchen in the Brinkley RV Model Z 2670

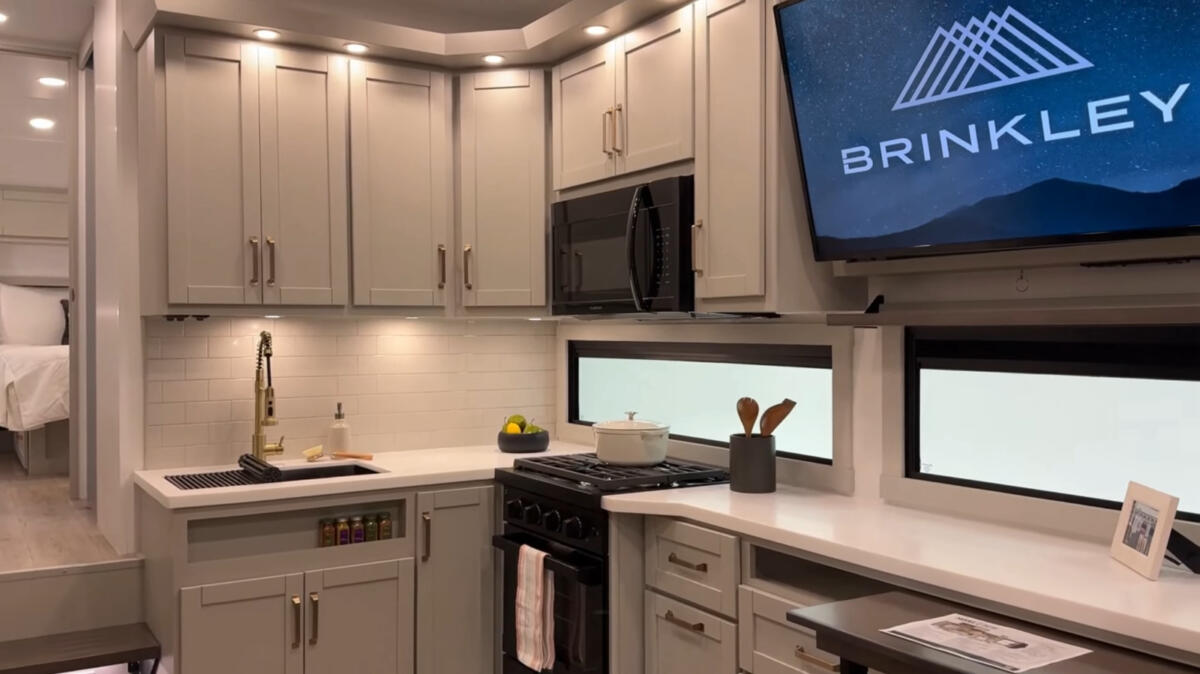

You could say that the kitchen counter runs the length of the space from the entry door to the bulkhead of this model and then makes a left turn to add more space. As usual, Brinkley is using high-quality appliances here—no complaints.

The drawers are also something to write home about. They have dovetailed corners, which is much stronger and better than stapled edges. They also finish the wood on the edges of the drawers and reinforce the bottom of the drawers.

Something that shows that Brinkley is thinking is that there’s a cabinet in the kitchen that can be accessed with the slide in that has all the fuses and circuit breakers. Someone is paying attention.

But something that really sets this space apart is the dining table.

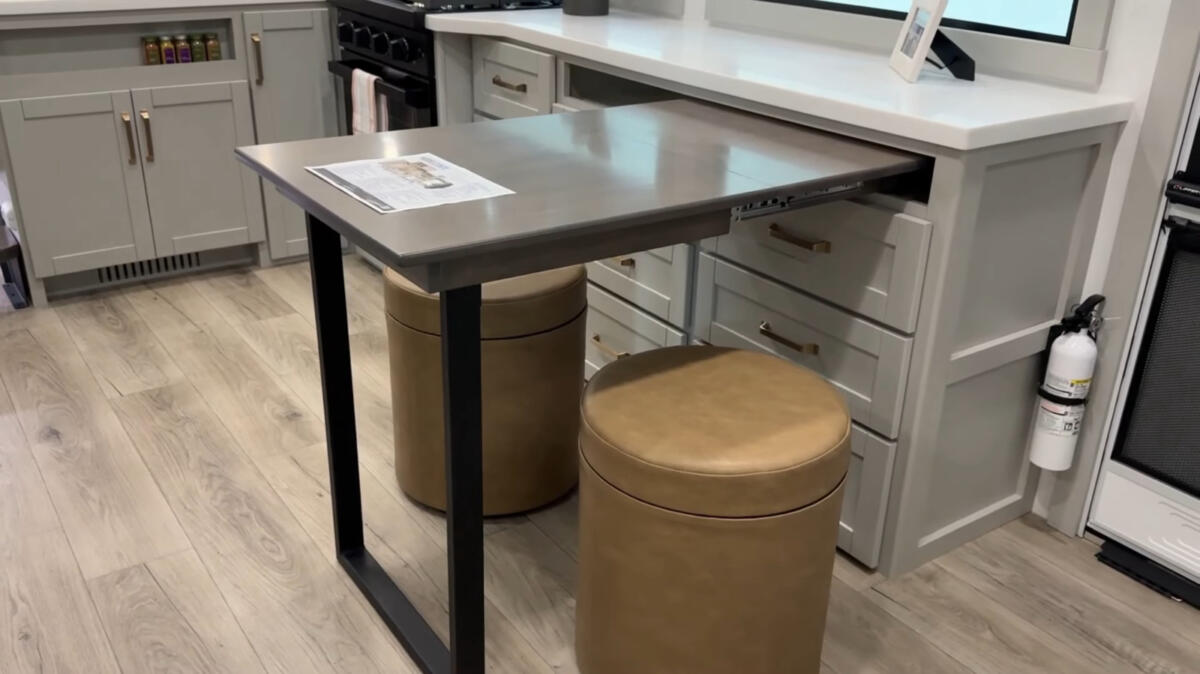

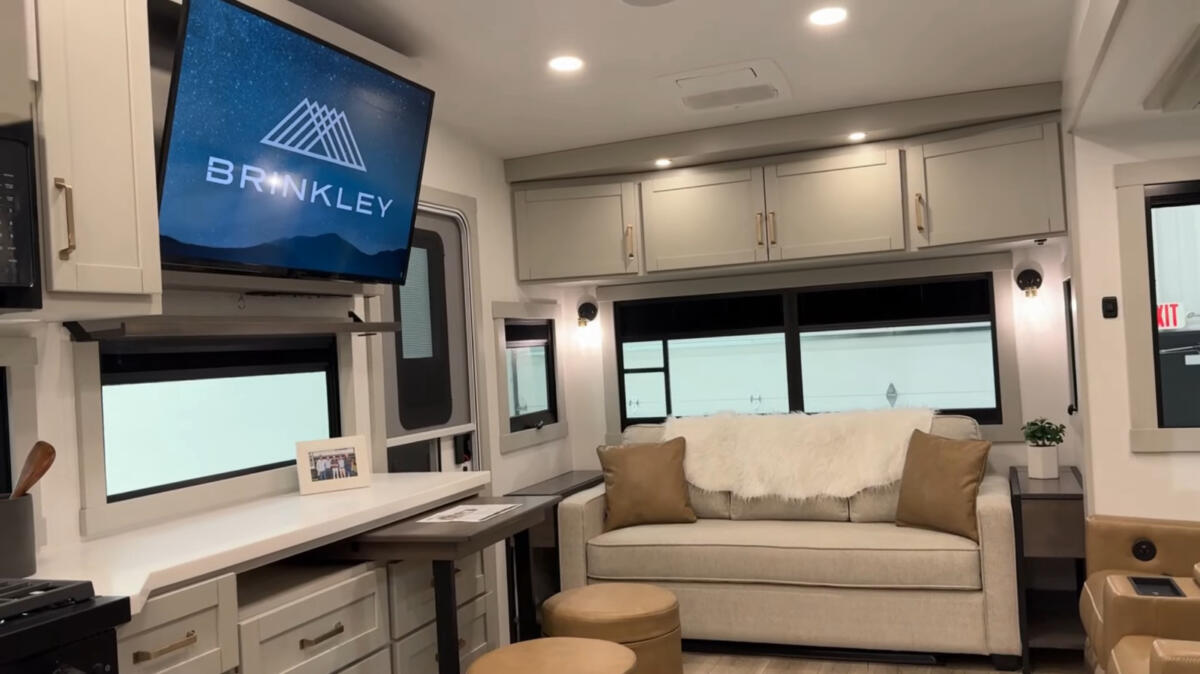

The dining table is mounted a bit higher and is sort of like a tongue that sticks out of the cabinet. You can have just the tip of said tongue or get the full treatment. There is an extension that slots into the space giving you a full-length table. It also slides back and forth.

This makes sense, as there are a bunch of drawers here that you’ll need to move the legs of the table to access. So it’s a good thing the table slides back and forth.

Upper deck in the Brinkley Model Z 2670

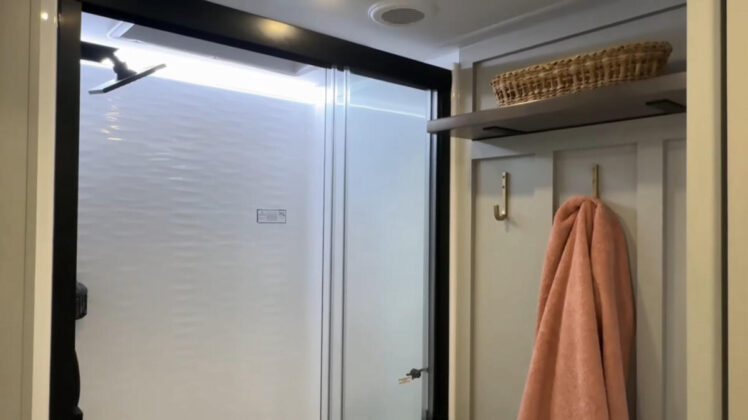

I like that there’s a “bubble” in the ceiling of the bathroom so you get additional headroom, but it doesn’t extend to the exterior of the trailer. These skylights are a huge source of leaks as they expand and contract differently than the rest of the roof around them—which is a challenge for the sealants.

But there are lights in the shower, so it’s not dark. This works out even when it is dark outside. Like, you know, at night.

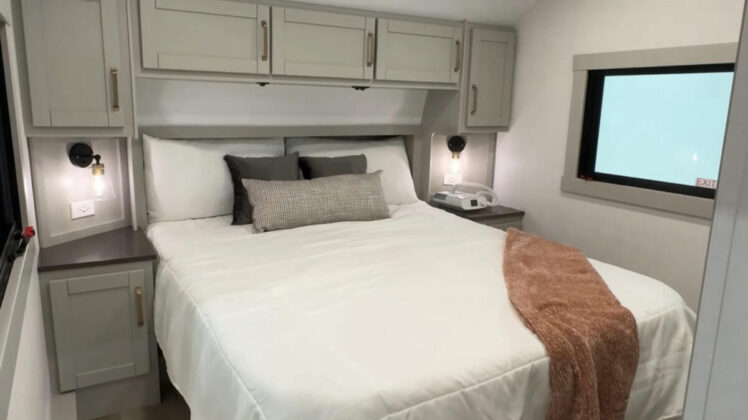

Getting to the second floor, you’ll see floating steps which are the perfect spot for shoes. Once upstairs, you’ll likely appreciate the 6’ 7.5” ceiling height.

Since I mentioned that the “bubble” in the shower doesn’t extend into a skylight, know that Brinkley is using different sealants on the roof of their rigs that tend to last a lot longer and require much less maintenance. Yes. They’re more expensive. But do you want to have to go up on the roof frequently inspecting and maintaining the lesser sealants that are prevalent in the RV industry? I didn’t think so.

Conclusions

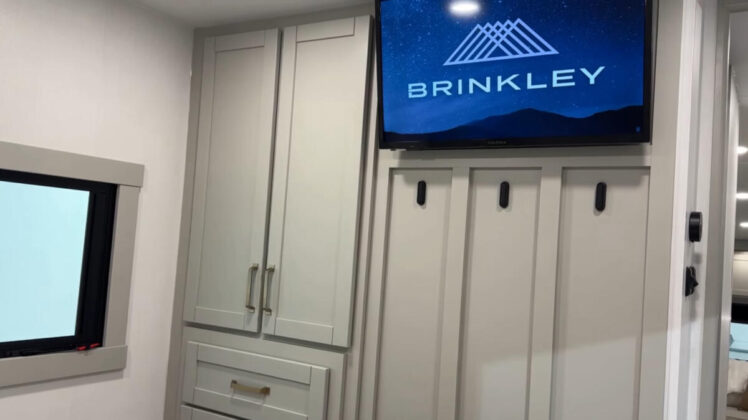

One of the things I think that could easily be changed by checking out what Keystone’s Cougar division is doing is to buy a mount for the TV that enables it to lower. As it is, it’s pretty high up, so you’re almost looking to the sky when watching TV. I know this is going to promote falling asleep.

Otherwise, I really like this fifth wheel. The fact that it’s heavier and more expensive than others in this category makes me happy because it’s not so flimsy. That’s a good thing.

We all perceive things differently, of course, and I really, really dislike the gold faucets and handles because it just seems so gaudy. But that’s just me.

I also absolutely love the fact that this rig is using the Furrion Chill Cube for the main air conditioner.

Overall, Brinkley RV has really shaken up the industry in so many ways. They seem to be building a better RV. But the appearance of their RVs, too, is really causing others to finally address the carnival float exteriors that were so common.

I like this and like what I see in Brinkley RV. What’s your take on this latest offering?

My thanks to Josh from Bish’s RV for the photos and video in this article.
