Good day, Dave,

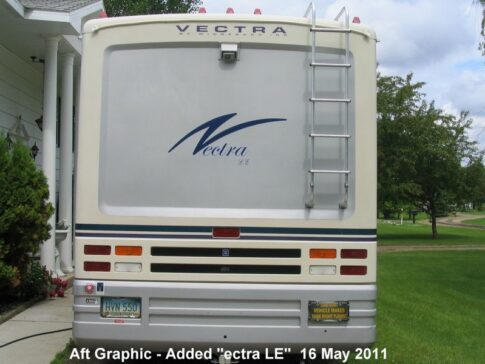

I am wondering if I can replace the roof-mounted front and rear (amber and red) clearance lights on my 1994 Winnebago Vectra. First, I have broken and lost a couple to low-hanging tree branches. Second, the lenses are getting very hard to find replacements or, and the salvage yard ones are brittle from ultra-violet and aging and easily break when installing. Also the gaskets are deteriorating. I am thinking of removing them, covering the wire/screw holes with a strip of fiberglass and Dicor sealant, and installing new ones, either 3/4″ round or 2″ LED types on the front and rear cap faces. Any thoughts on this? Thanks for your great, helpful articles over the years – appreciate them. —Doug, 1994 Winnebago Vectra WMC34RC
Hi, Doug,

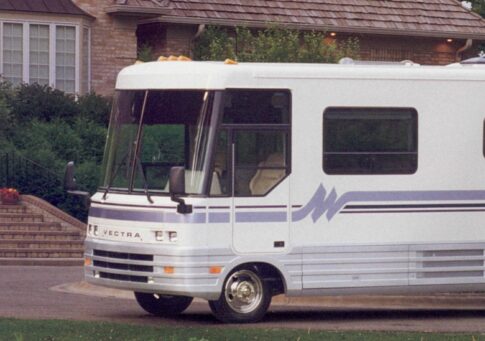

The Vectra is one of my favorite motorhomes. My folks had a 1993 33’ model and loved it. The only issue they had with it is just what you are having, the clearance and marker lights being mounted on top and exposed to everything!

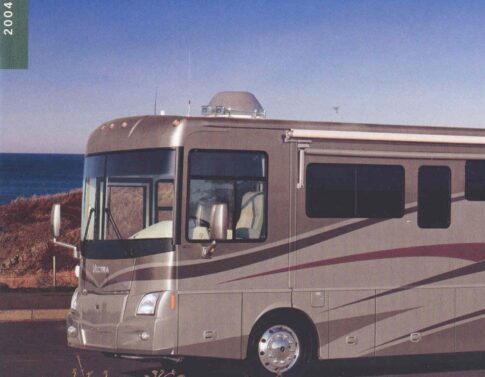

They did this for several years and then finally, in 2004, they reintroduced the Vectra and had the lights flush mounted in the vertical side of the front and back cap. This not only protected them better but they had less exposure to the sun due to the angle.

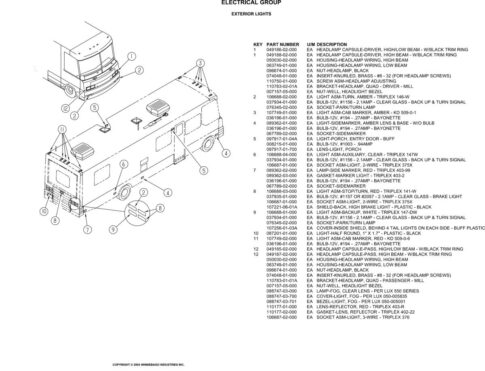

According to the parts page on the Winnebago website (love Winnebago questions!), the front amber lights are part number 107749-01-000 EA LIGHT ASM-CAB MARKER, AMBER – KD 509-0-1, and the rear red ones are 107749-02-000 EA LIGHT ASM-CAB MARKER, RED – KD 509-0-6.
Winnebago parts from “Winnebago Parts”
I called Mobility RV in Hanlontown, IA, which also goes by “Winnebago Parts,” and they have them both in stock! That is hard to believe that you can get documentation and parts for something over 30 years old. The amber light assembly is $29.66 and the red is $33.59. You can reach them at 800-933-7742.
From my understanding of the FMVSS (Federal Motor Vehicle Safety Standards) requirements, the amber are in the front and indicate width and height, while red lights are on the rear and also indicate width and height. Side markers are amber and required on any vehicle longer than 80”. They indicate width of the vehicle.
I also did an internet search, and it seems that KD 509 is a common light fixture used on several vehicles and readily available. Some even state they fit Mack Trucks and Winnebago motorhomes! You should be able to find a footprint that matches what you have now.
How to replace clearance lights
When you remove the current fixture, there should be a small hole for the wiring. Typically, Winnebago inserted a rubber grommet and sealant to reduce moisture penetration. Some manufacturers simply cut a large hole in the cap to make it easier to fish the wires in and out, then relied on the rubber gasket of the light fixture to keep out moisture. However, if the lens was removed or cracked, water could leak or wick into the fixture and cause a hard-to-find leak inside. It is important to seal not only the hole for the wire, but also any holes created by the original screws.
I don’t think you need a fiberglass patch unless there are spider cracks in the fiberglass, then maybe just some resin. But the sealant is a good idea. However, for others that might have a larger hole for the wires and no grommet, the fiberglass patch might not be a bad idea.
