Why your slide out refrigerator is not cooling

By RV Travel
3

By Dustin Simpson
Join Terry and me in our RV shop, as we explain why so many RV owners are having RV refrigerator venting and cooling issues in the high summer heat. Note that these issues only apply to the nonresidential models (LP gas units).

We keep coming across units with baffling issues with refrigerators in slide outs that have been installed too high. Let’s look into it.

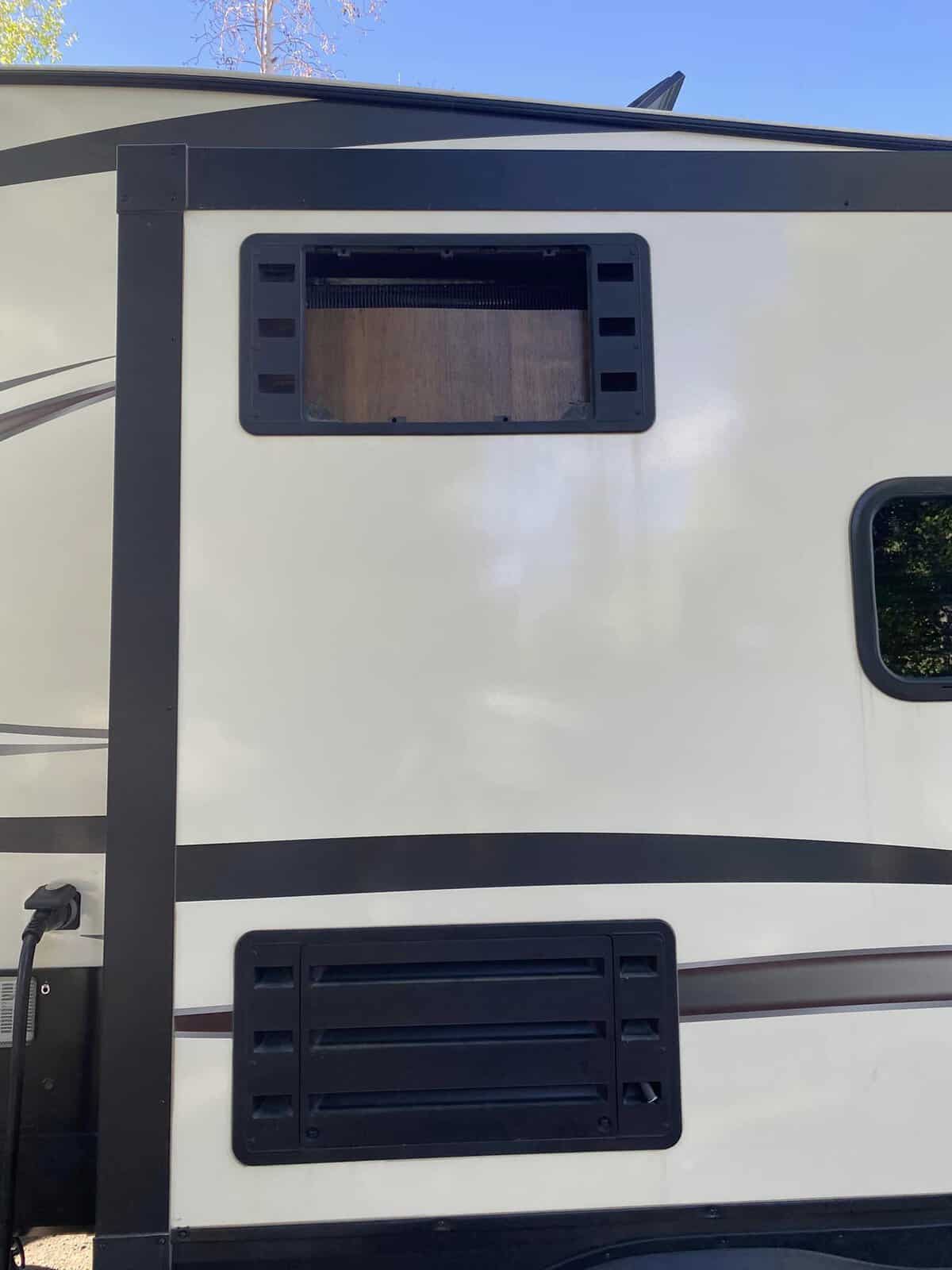

Baffling installed too high from the manufacturer.

Typically we’ve had to cut the baffling down a little, as well as add some insulation, paneling, or flashing to help block off and direct the air out through the vent. We have, in some cases, added additional fans or Fridge Defend kits.

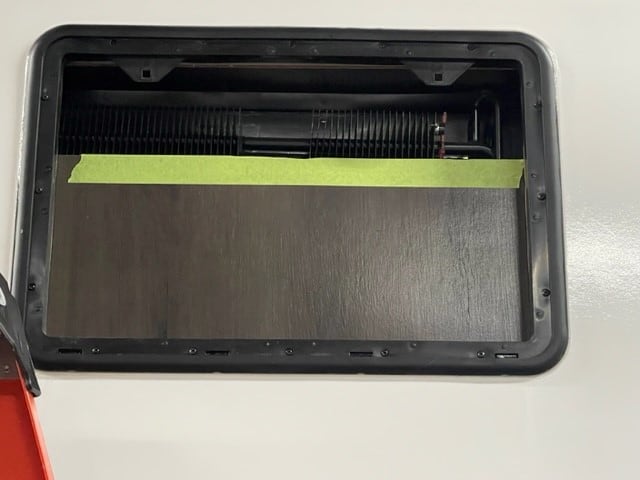

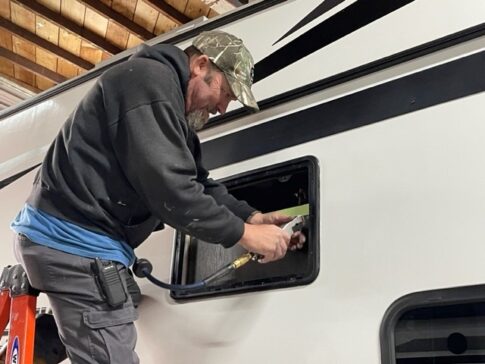

Terry has marked with green tape the area to trim down to, then cuts down baffling for proper ventilation.

We are also looking for missing baffling on the backside of their refrigerator in a slide out.

Example of upper baffling behind the upper refrigerator exterior access door.

Mostly RV owners do not find out there is an issue until the high heat of summer.

What is the baffle in a propane fridge for?

The baffle in a propane fridge directs the air over the heated condenser fins and absorber coils and isolates the rejected heat away from the top and sides of the refrigerator cabinet. The air around the heated condenser fins and absorber coils absorbs some of the rejected heat from these components.

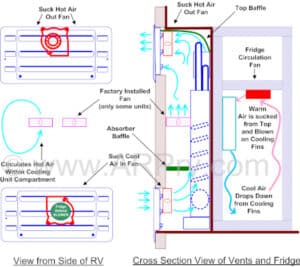

Example from Fridge Defend – Please see their website for additional info. (click to enlarge [slightly])
We recommend for owners with in-slide-out refrigerators to visit Fridge Defend at arprv.com for additional information that will help increase the efficiency of your fridge.

Join me below as I explain why you need a refrigerator service.

DIY tools and products:

More from Dustin

Make sure you check out my website, California RV Specialists, and our YouTube channel for more helpful information, and see our published articles on RVtravel.com and other social media pages.
